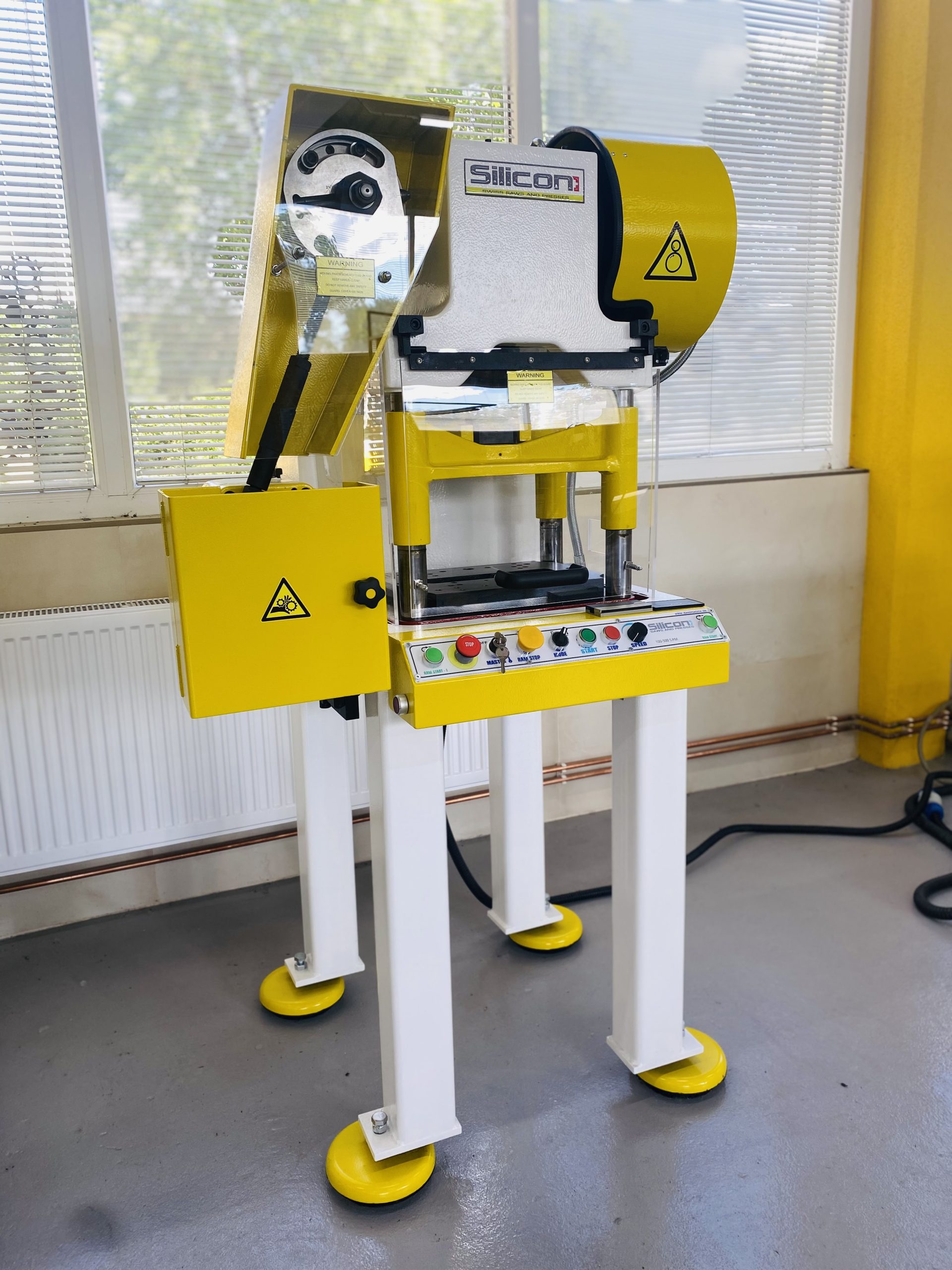

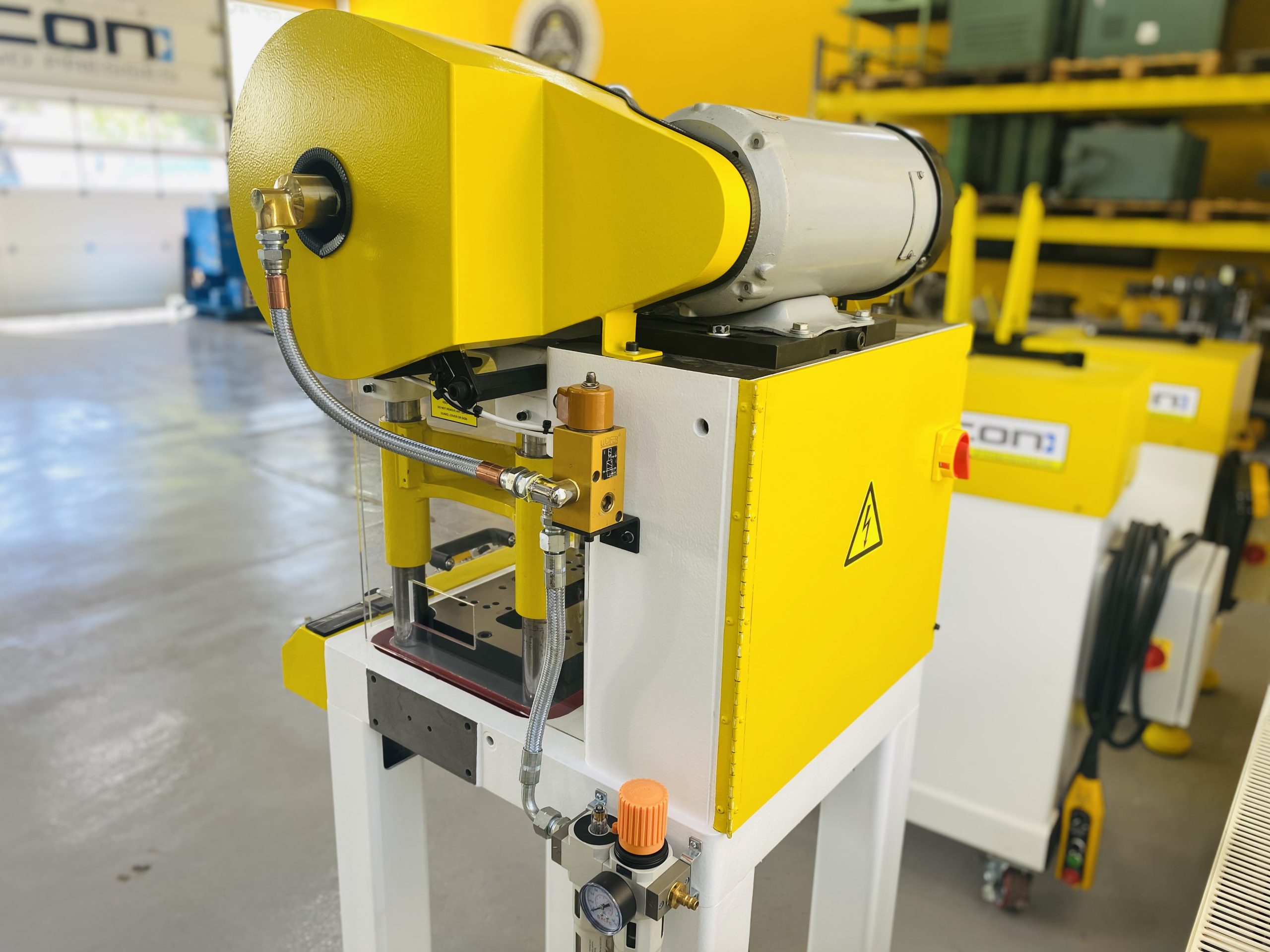

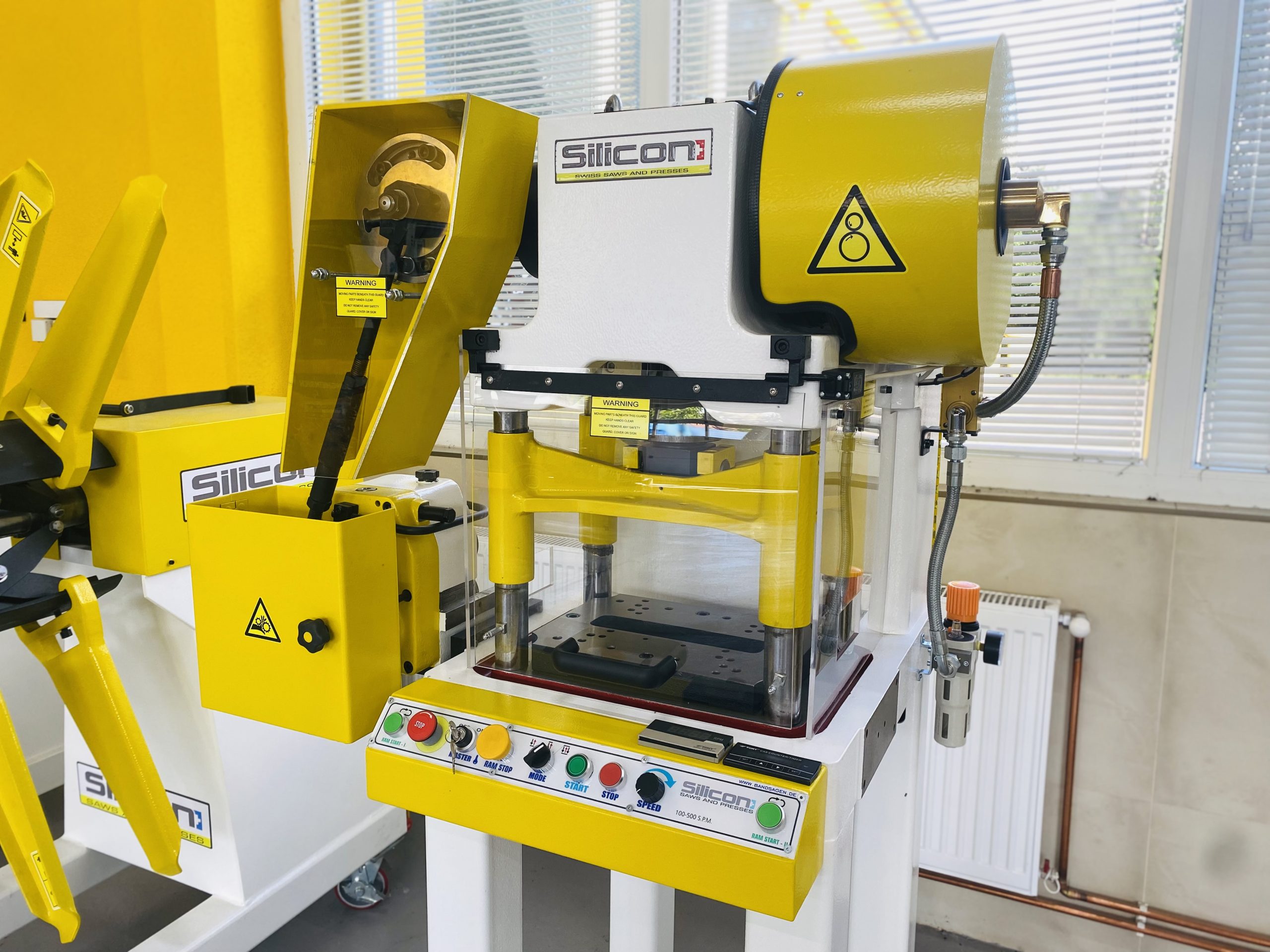

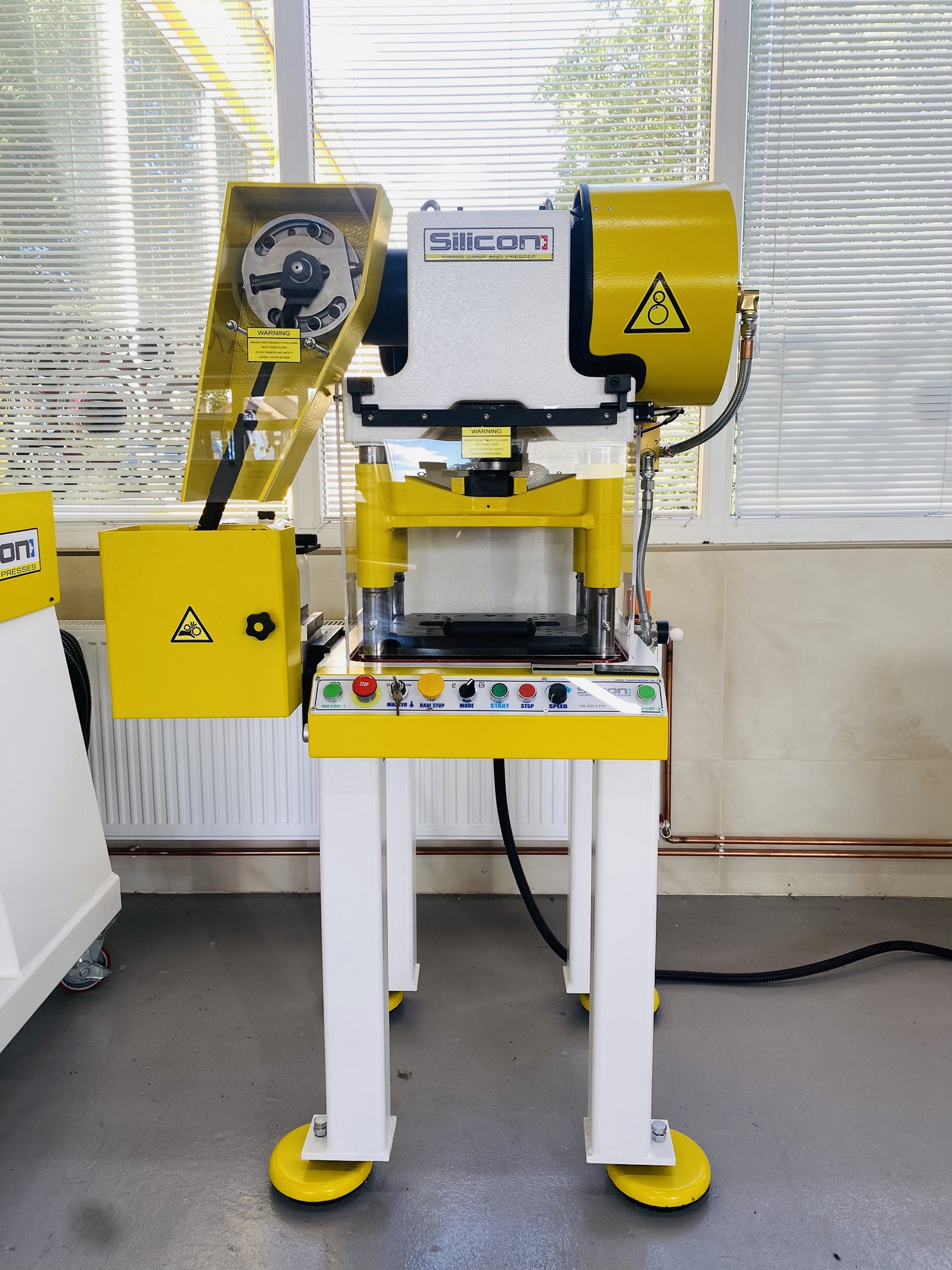

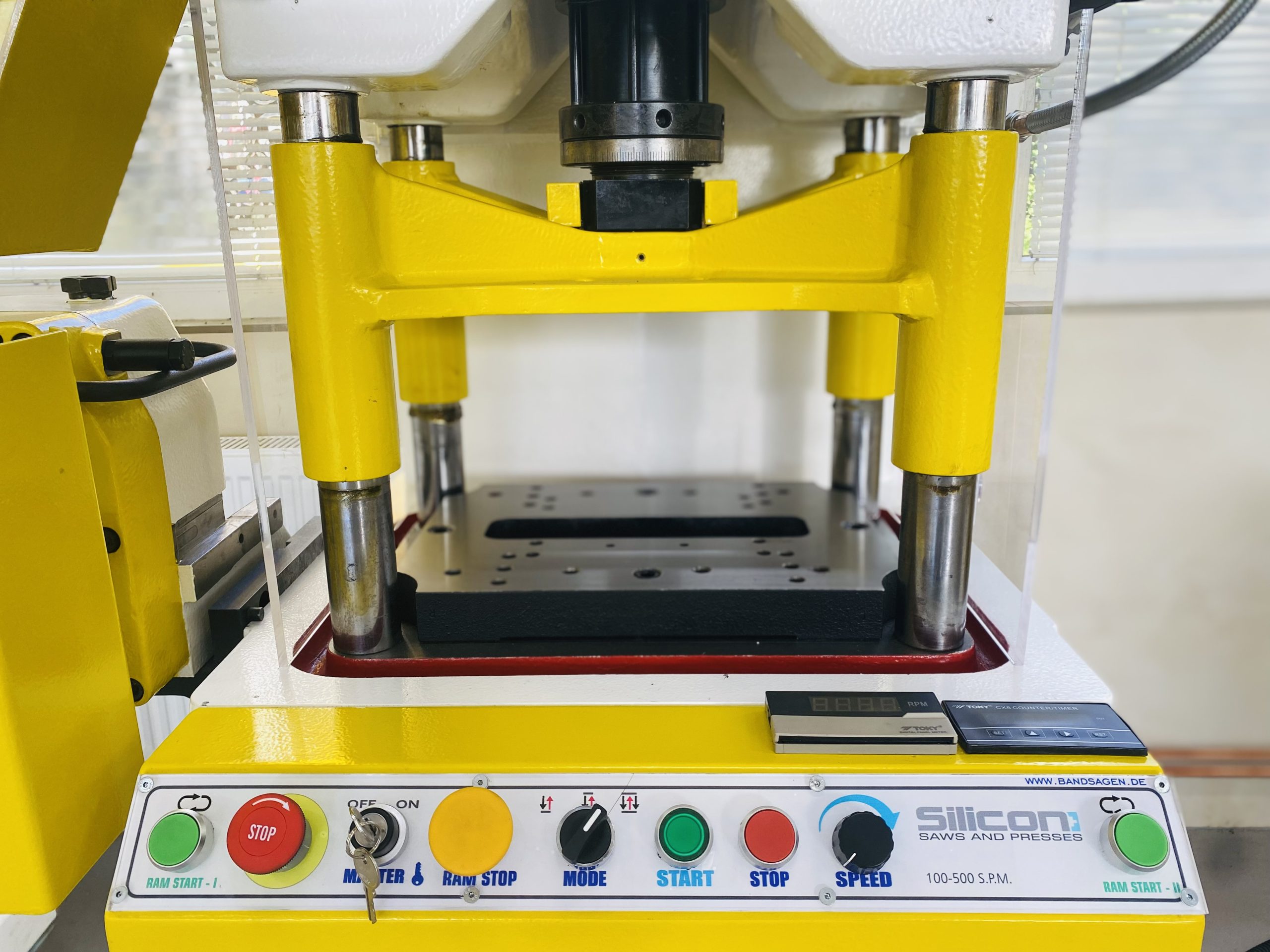

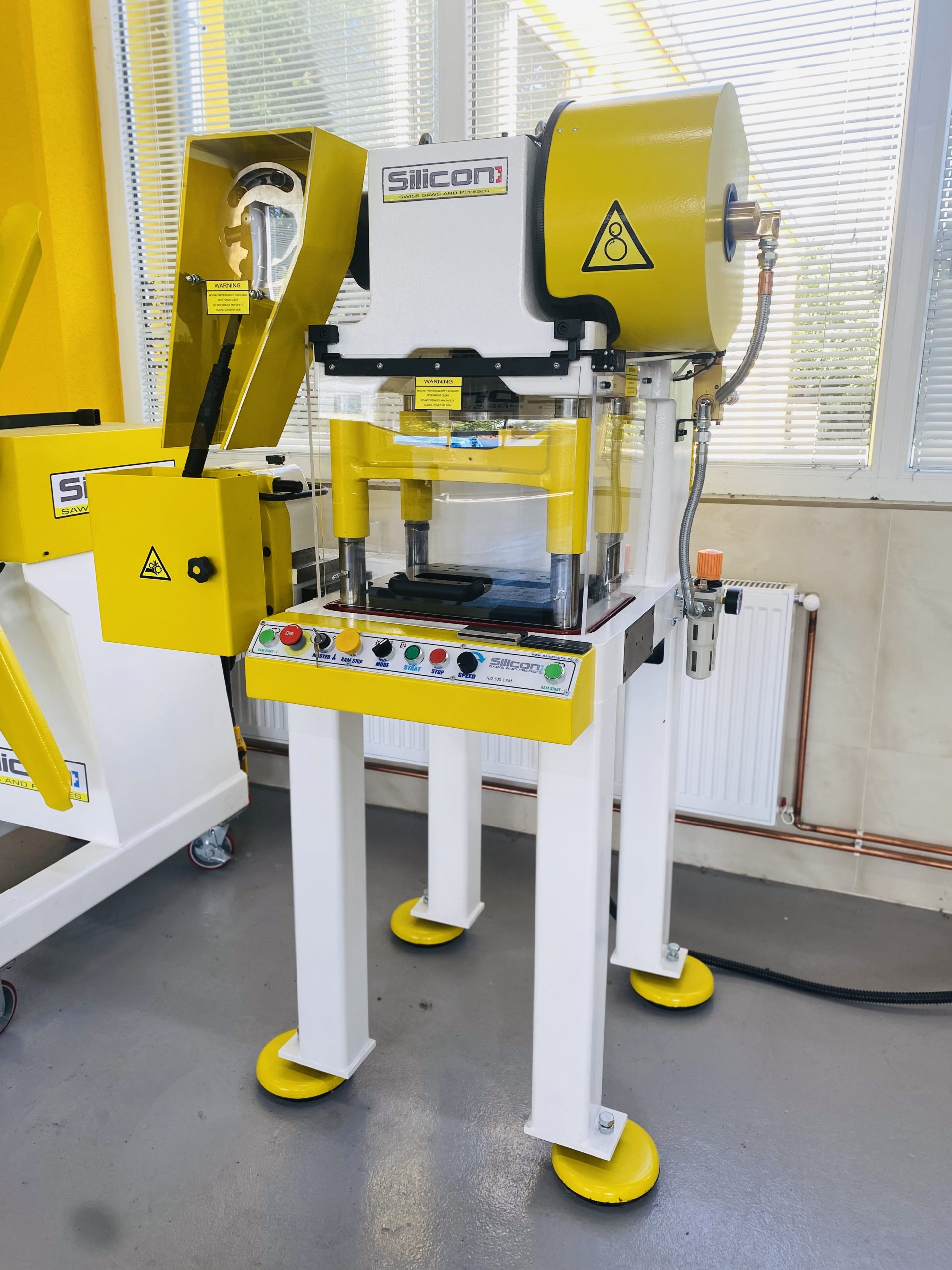

Bruderer BSTA 10 MINI

$1.00 $1.00
Sold By: Silicon
  • Bruderer BSTA 10 MINI.
  • Precision high speed punching press.
  • Nominal capacity: 100 [kN] (10 [t]).
  • Min./Max. number of strokes per minute: 100/500.
  • Variable stroke: 7, 13, 19, 25, 32, 38 [mm].
  • Fitted with BBV roll feeder.
  • Max width of strip: 30 [mm].
Out of stock
SKU: Bruderer BSTA 10 MINI
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Bruderer BSTA 10 MINI.
Precision high speed punching press.

Nominal capacity: 100 [kN] (10 [t]).
Min./Max. number of strokes: 100/500.
Variable stroke: 7, 13, 19, 25, 32, 38 [mm].

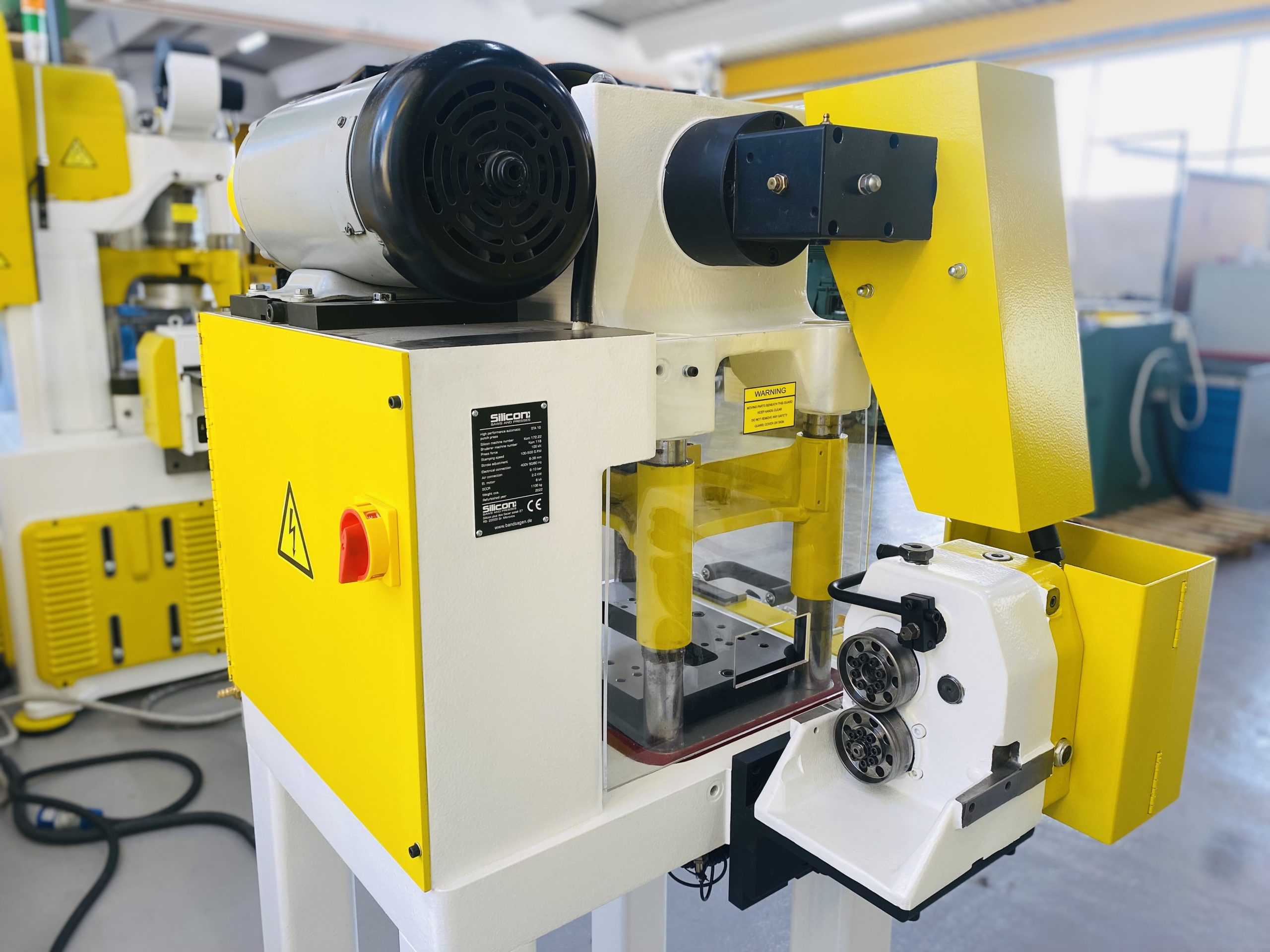

Fitted with BBV roll feeder.
Max width of strip: 30 [mm].
Feed length variable up to 60 [mm] max.

All mechanical and electrical functions tested and working.

Execution: 4 supports.

Passage between the supports: Longitudinal 340 [mm]; Lateral 208 [mm].

Operating instructions in English and schematics included.

Press weight cca. 1300 [kg].

On stock ready for delivery.
