BRUDERER BSTA 25 10622

$1.00 $1.00
Sold By: Silicon

BRUDERER BSTA 25 [10622]

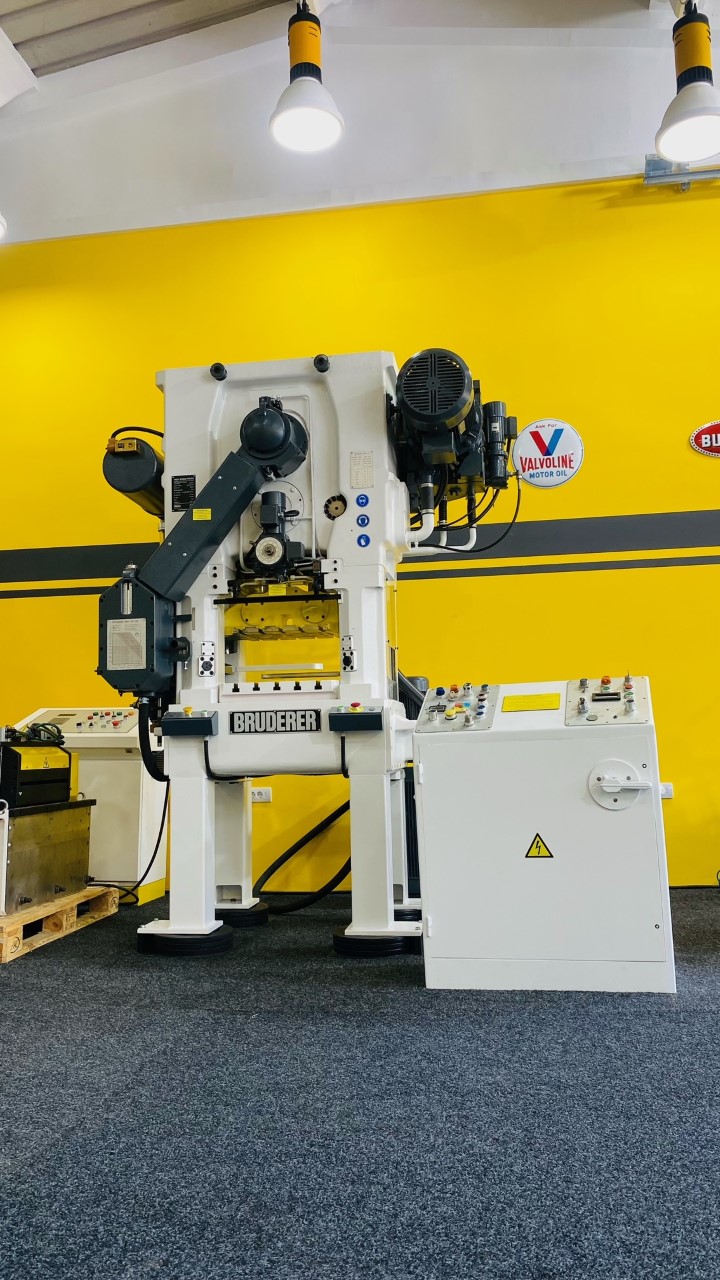

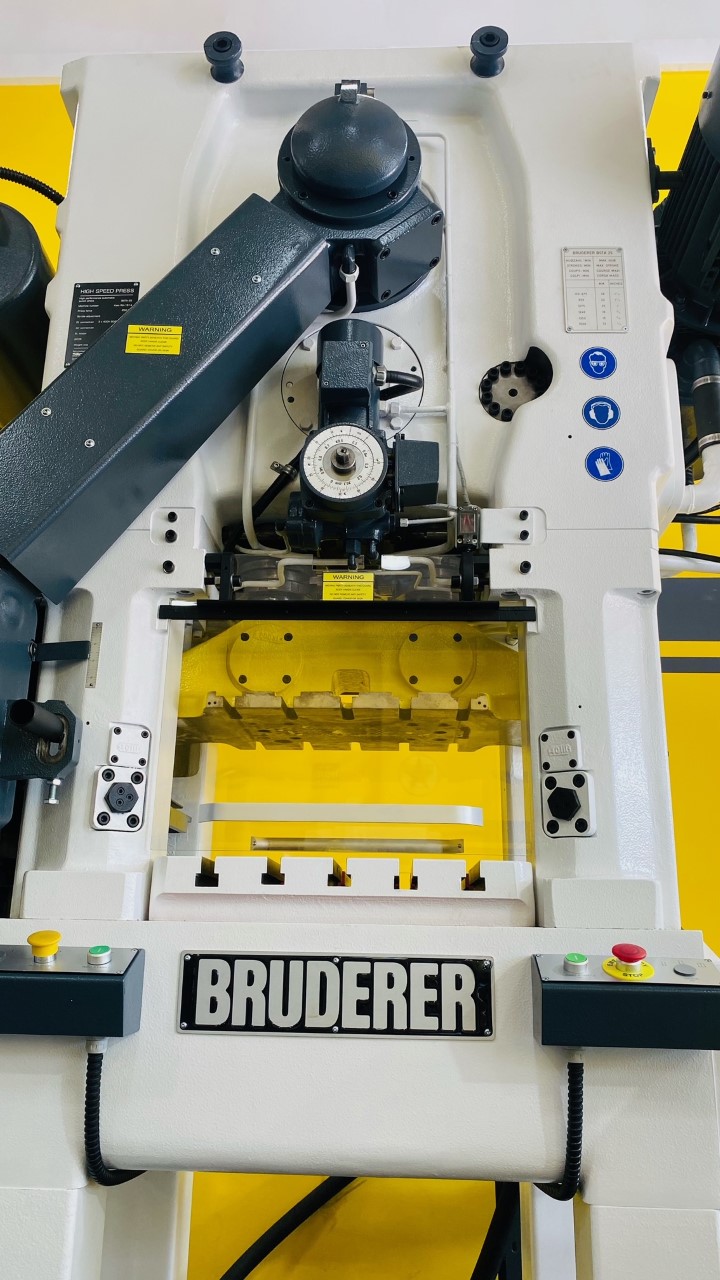

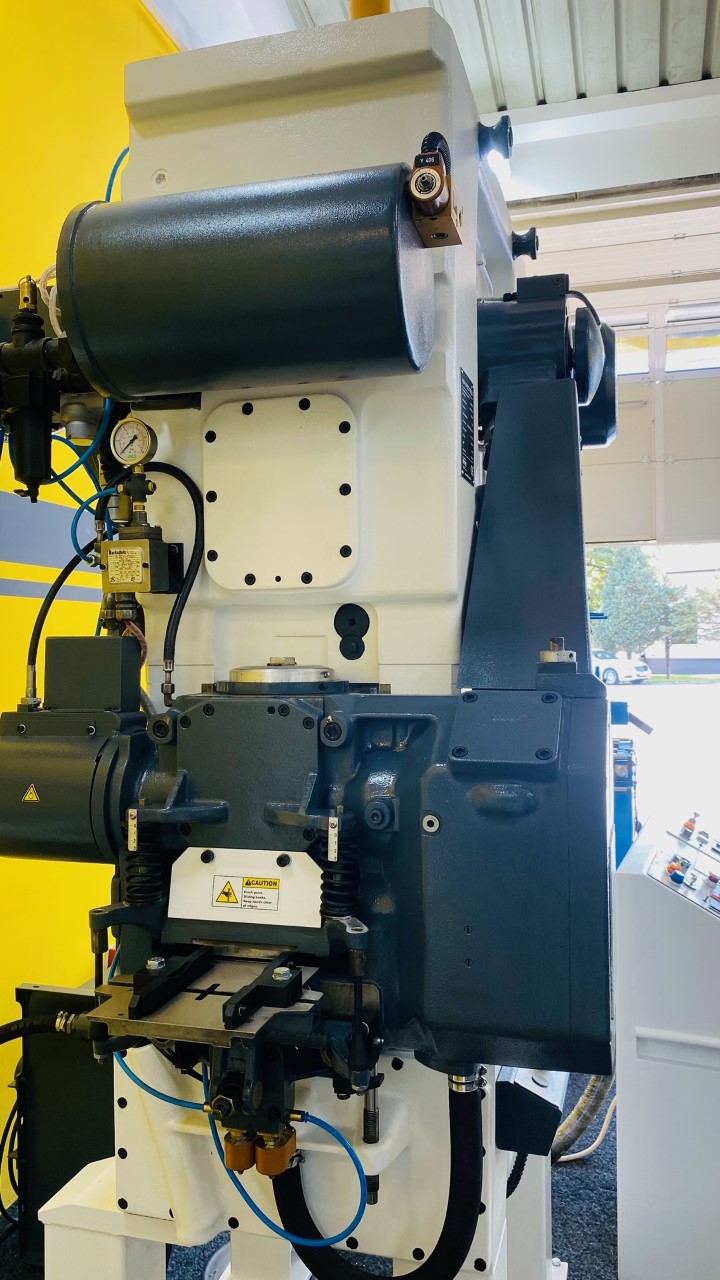

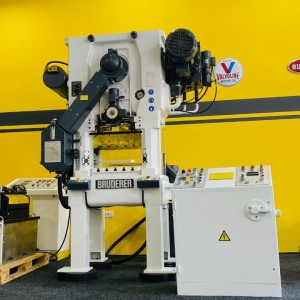

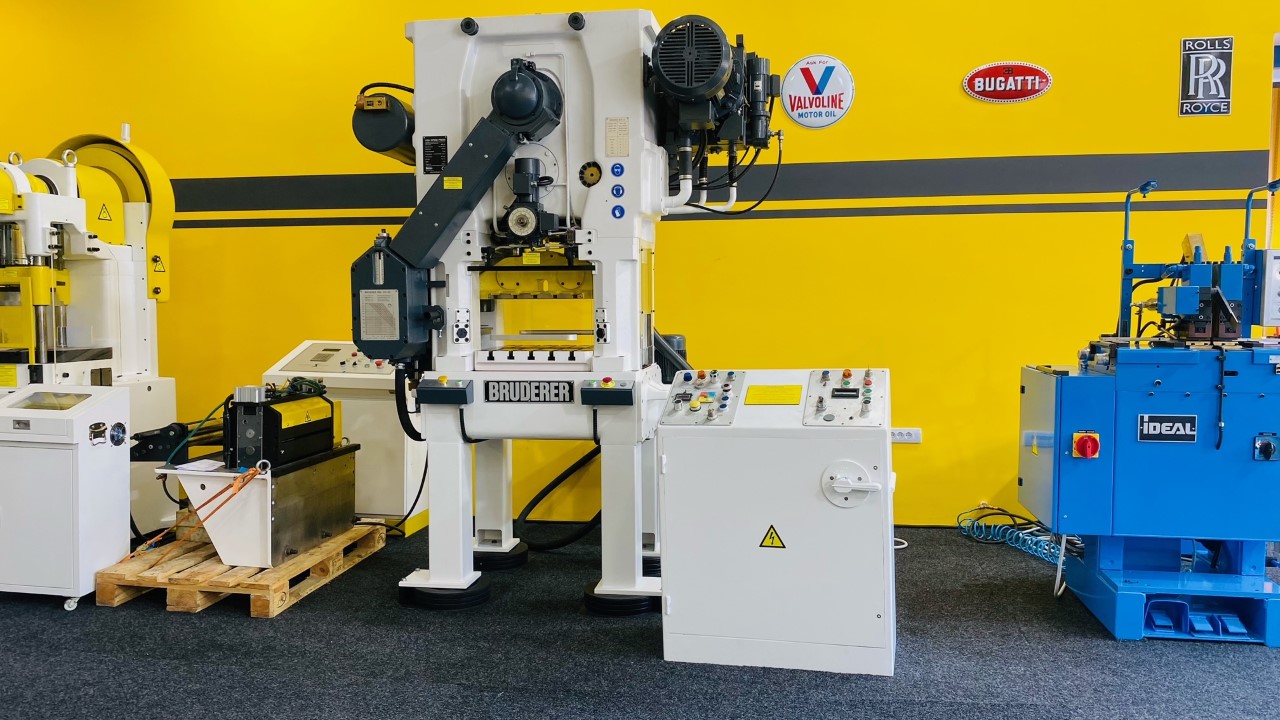

  • Precision high speed punching press Bruderer.
  • Nominal capacity: 250 kN (25 ton).
  • Min./Max. number of strokes: 100/1500.
  • Max width of strip: 202 mm.
  • Variable stroke: 13 to 38 mm.

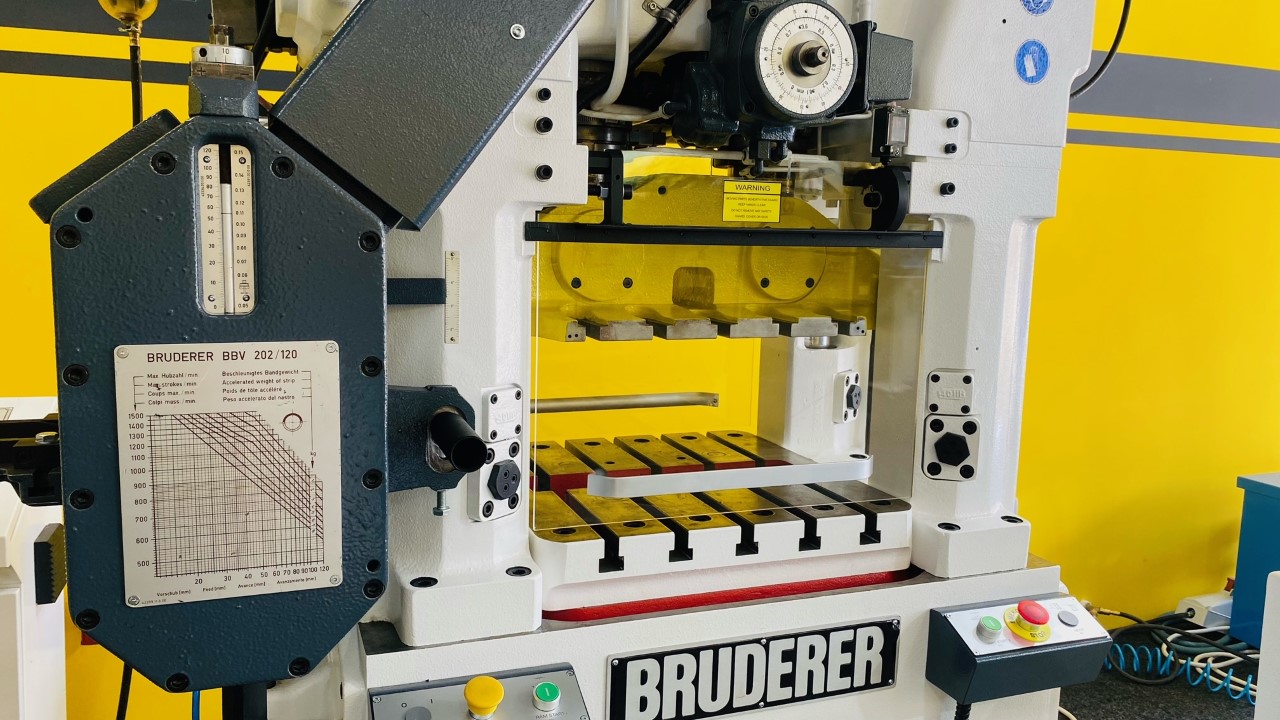

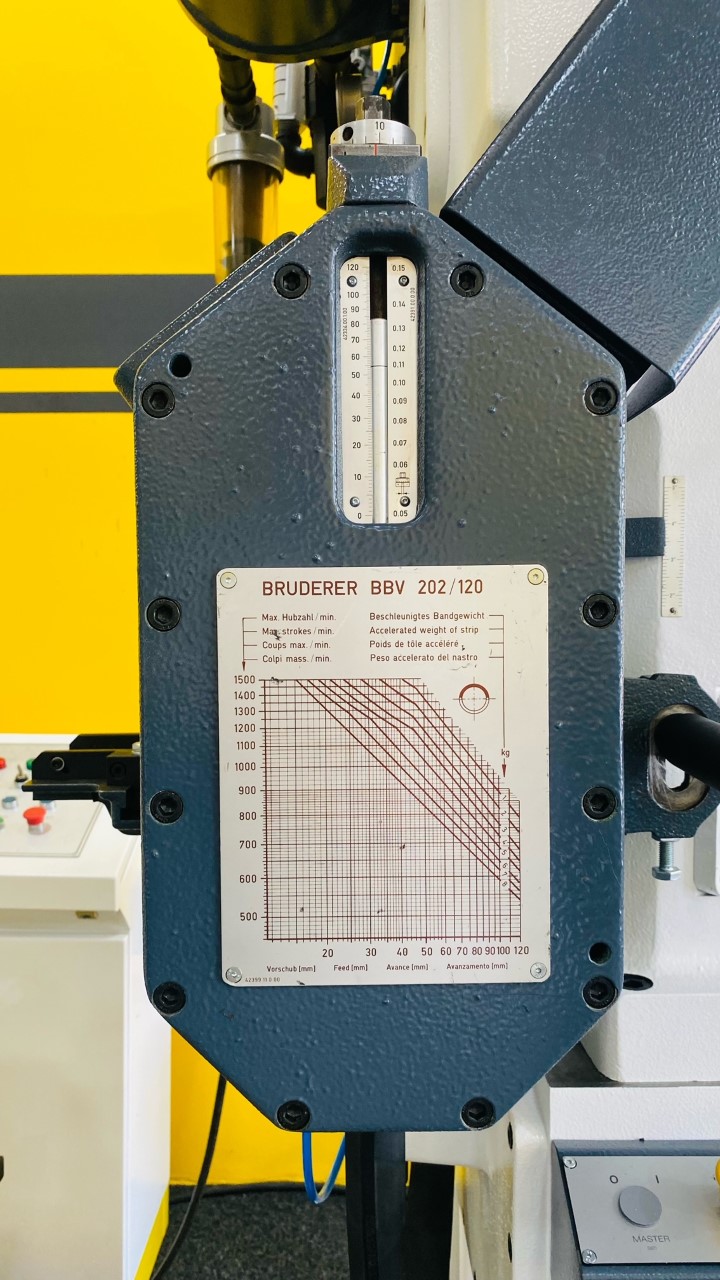

  • BBV 202/120 roll feed mounted on left-hand side.
  • Feed length up to 120 mm max.
Out of stock
SKU: BRUDERER BSTA 25
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Oil pump. Oil cooler.
Execution: 4 supports.
Front and rear safety guards.
Fitted with spring feet dampers.
Tool height 176 – 239 mm.
Slide adjustment 51 mm.
Slide bore diameter 52 mm.
Table surface: Length 540 mm; Width 530 mm.
Table relieving: Length 430 mm; Width 75 mm.
Slide clamping surface: Length 438 mm; Width 360 mm.
Passage between the supports: Longitudinal 540 mm; Lateral 203 mm.
Press weight cca. 4500 kg.
User manual in English.
