BRUDERER BSTA 25

$1.00 $1.00
Sold By: Silicon
  • Precision high speed punching press.
  • Nominal capacity: 250 kN (25 ton)
  • Min./Max. number of strokes: 100/1500
  • Max width of strip: 202 mm
  • Variable stroke: 13 to 38 mm

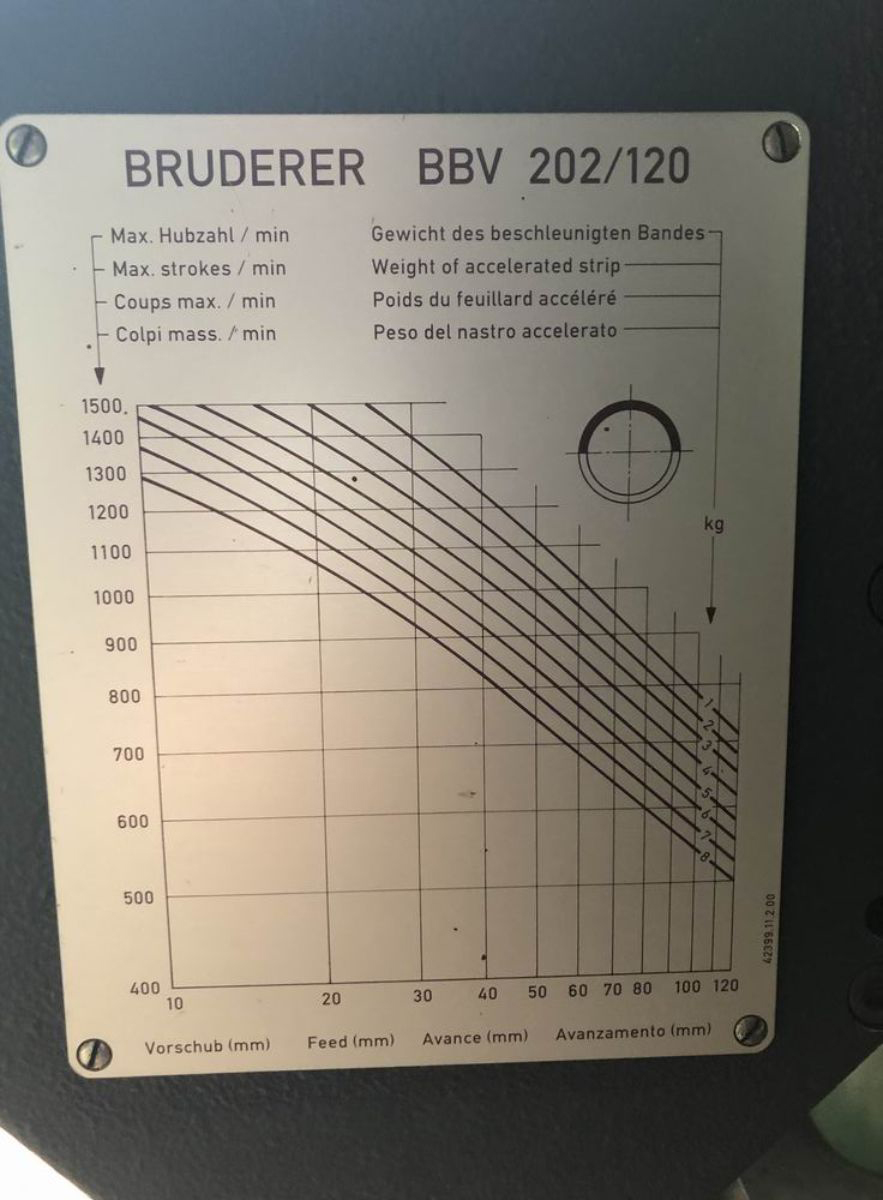

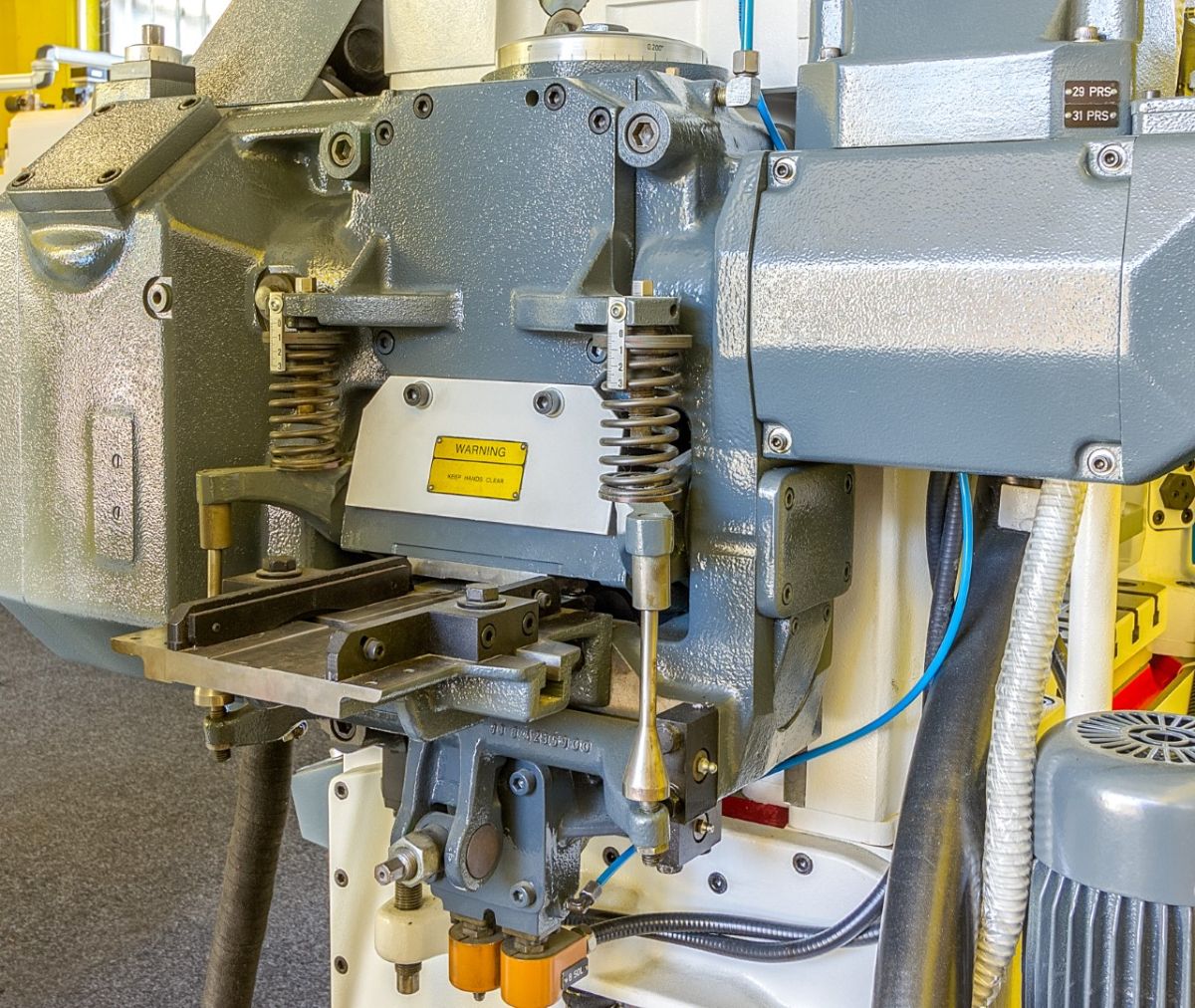

  • BBV 202/120 roll feed mounted on right-hand side.
  • Feed length variable up to 120 mm max.
  • Draw-in from right to left.
Out of stock
SKU: BRUDERER BSTA 25
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now
  • Oil pump. Oil cooler.
  • Execution: 4 supports.
  • Front and rear safety guards.
  • Fitted with spring feet dampers.
  • Sound insulating cabin included.
  • Tool height 176 – 239 mm.
  • Slide adjustment 51 mm.
  • Slide bore diameter 52 mm.
  • Table surface: Length 540 mm; Width 530 mm.
  • Table relieving: Length 430 mm; Width 75 mm.
  • Slide clamping surface: Length 438 mm; Width 360 mm.
  • Passage between the supports: Longitudinal 540 mm; Lateral 203 mm.
  • Press weight cca. 4500 kg.
  • Sound cabin weight cca. 1200 kg.
  • Voltage 50/60 Hz 3x 400 Volt.
  • User manual in English.
  • Made in Switzerland.
