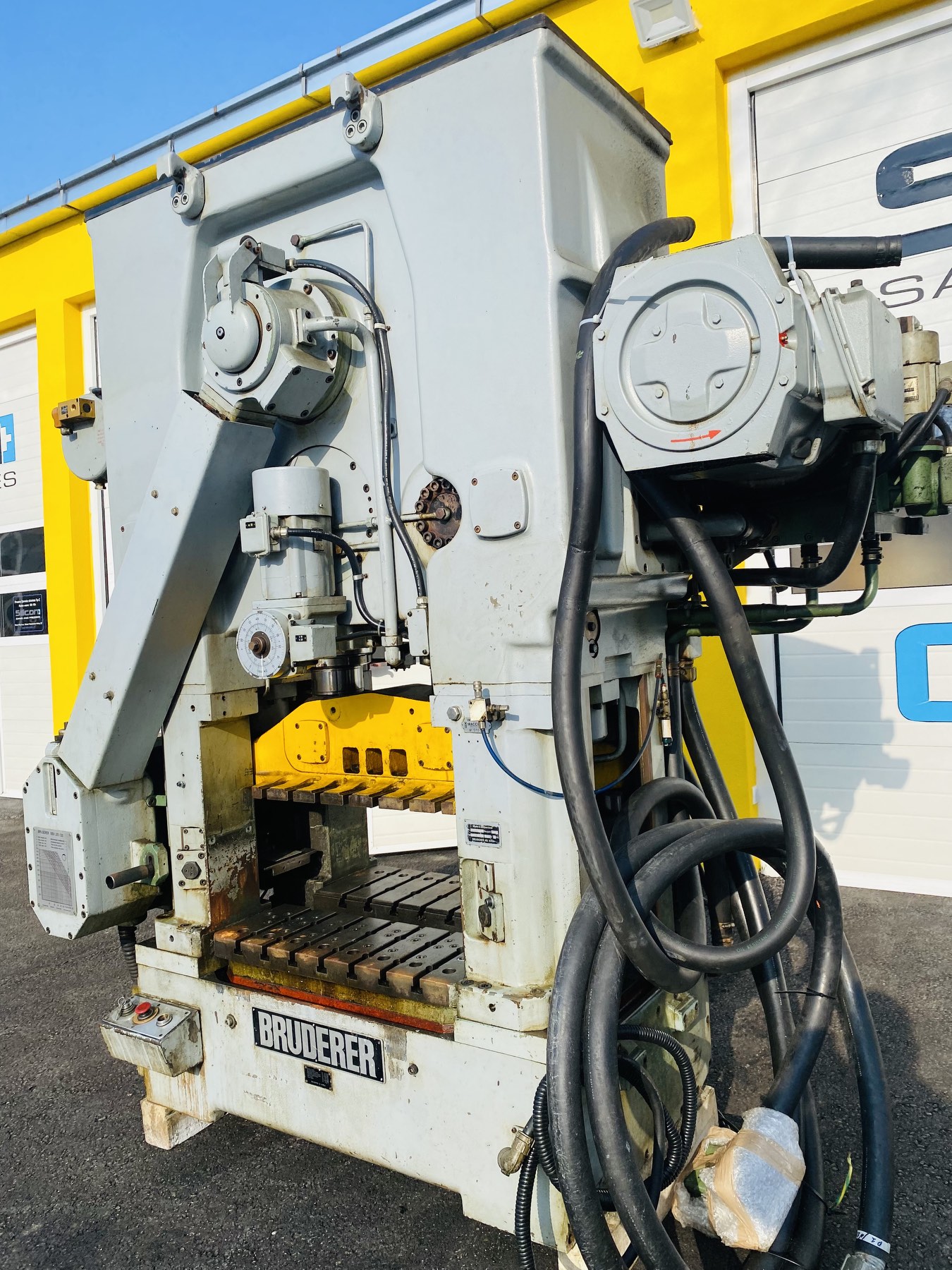

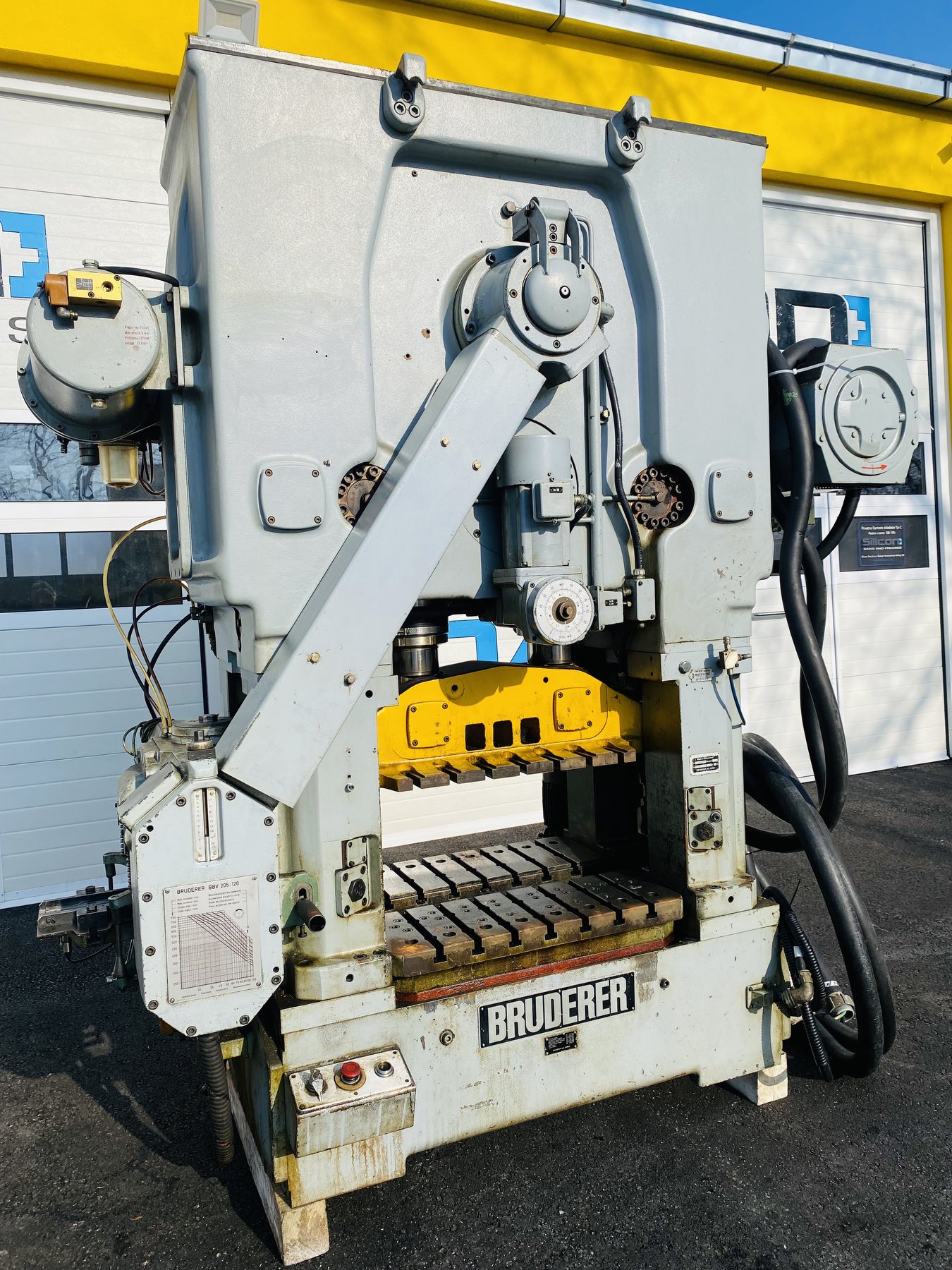

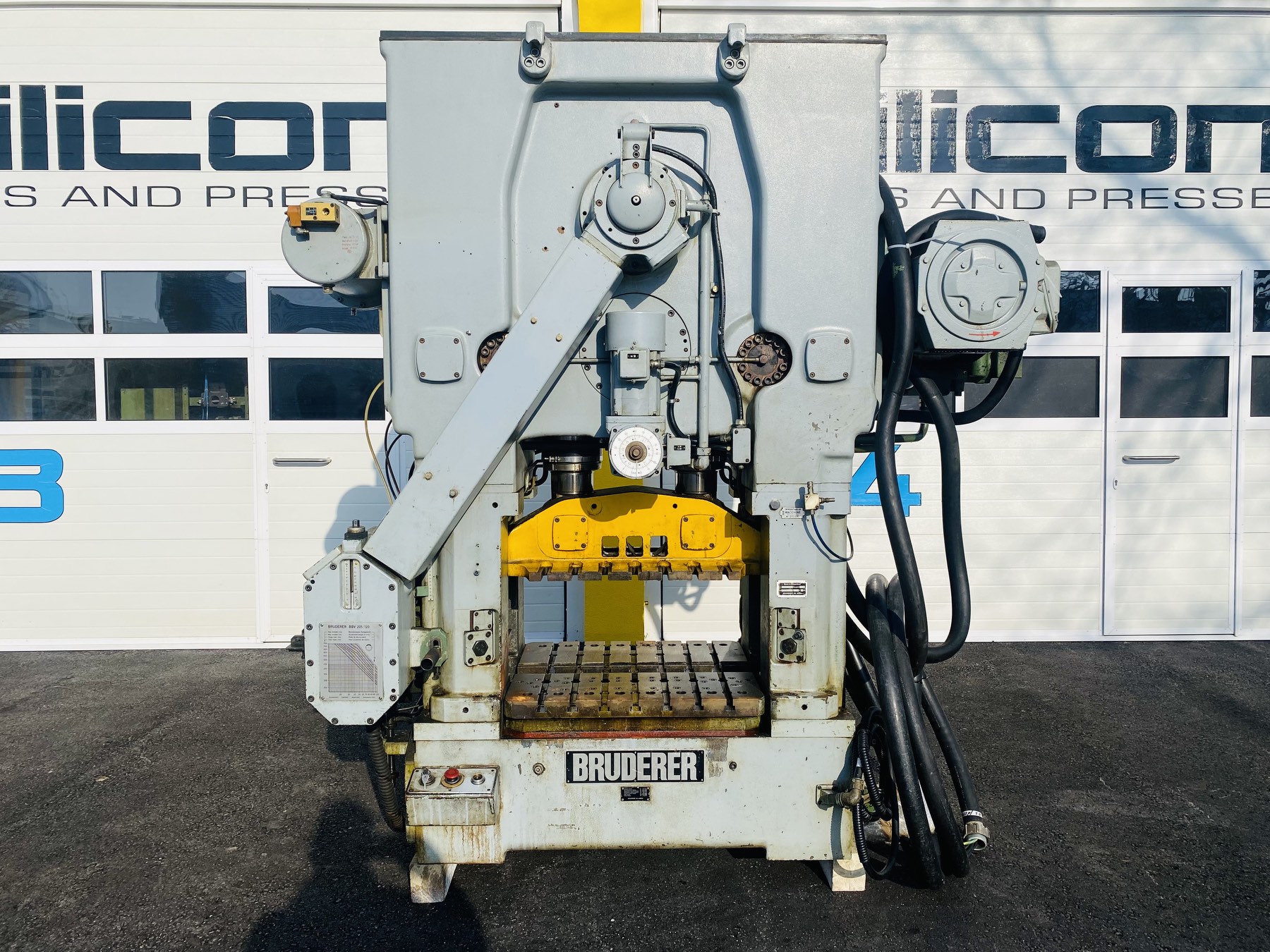

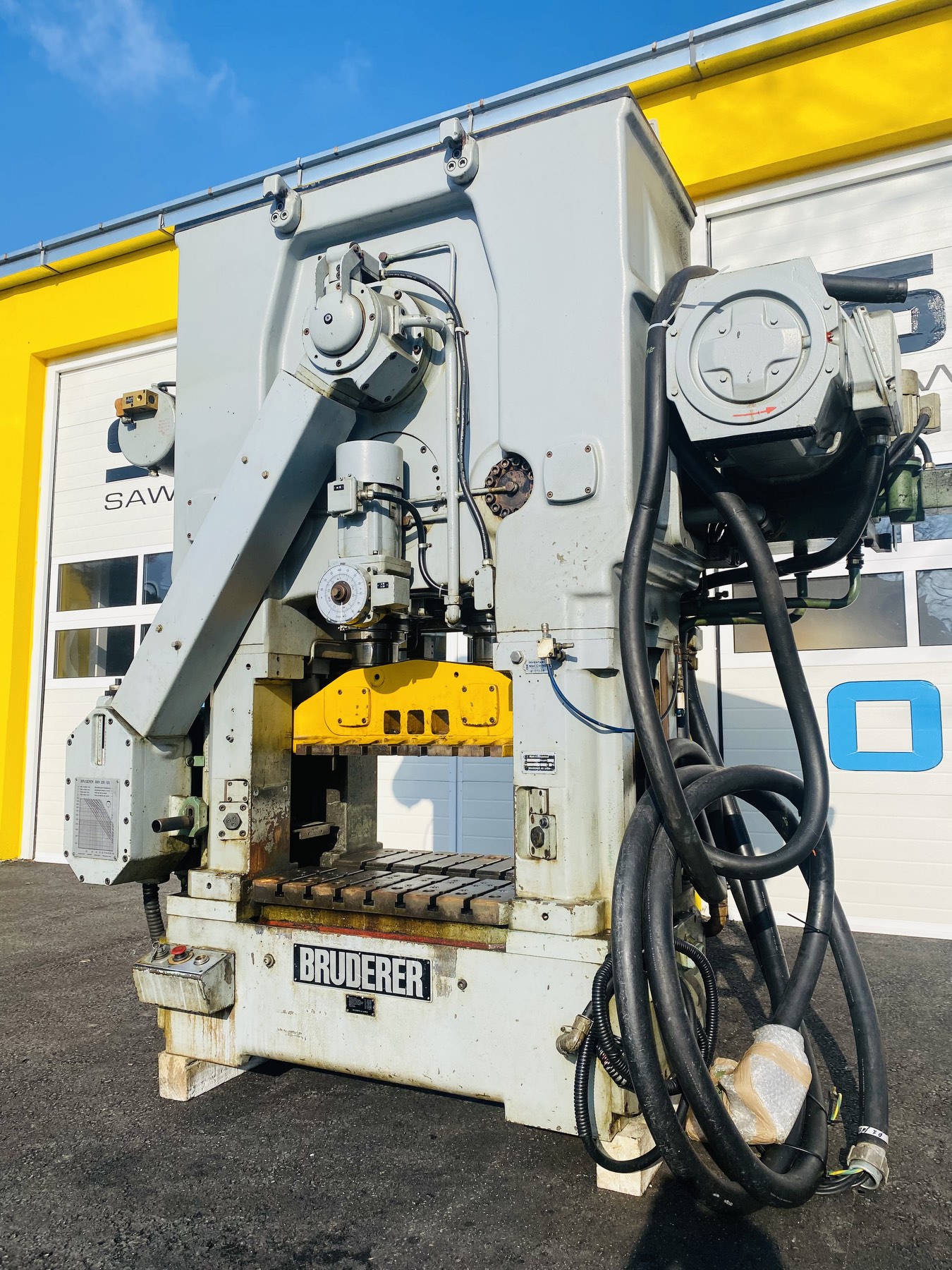

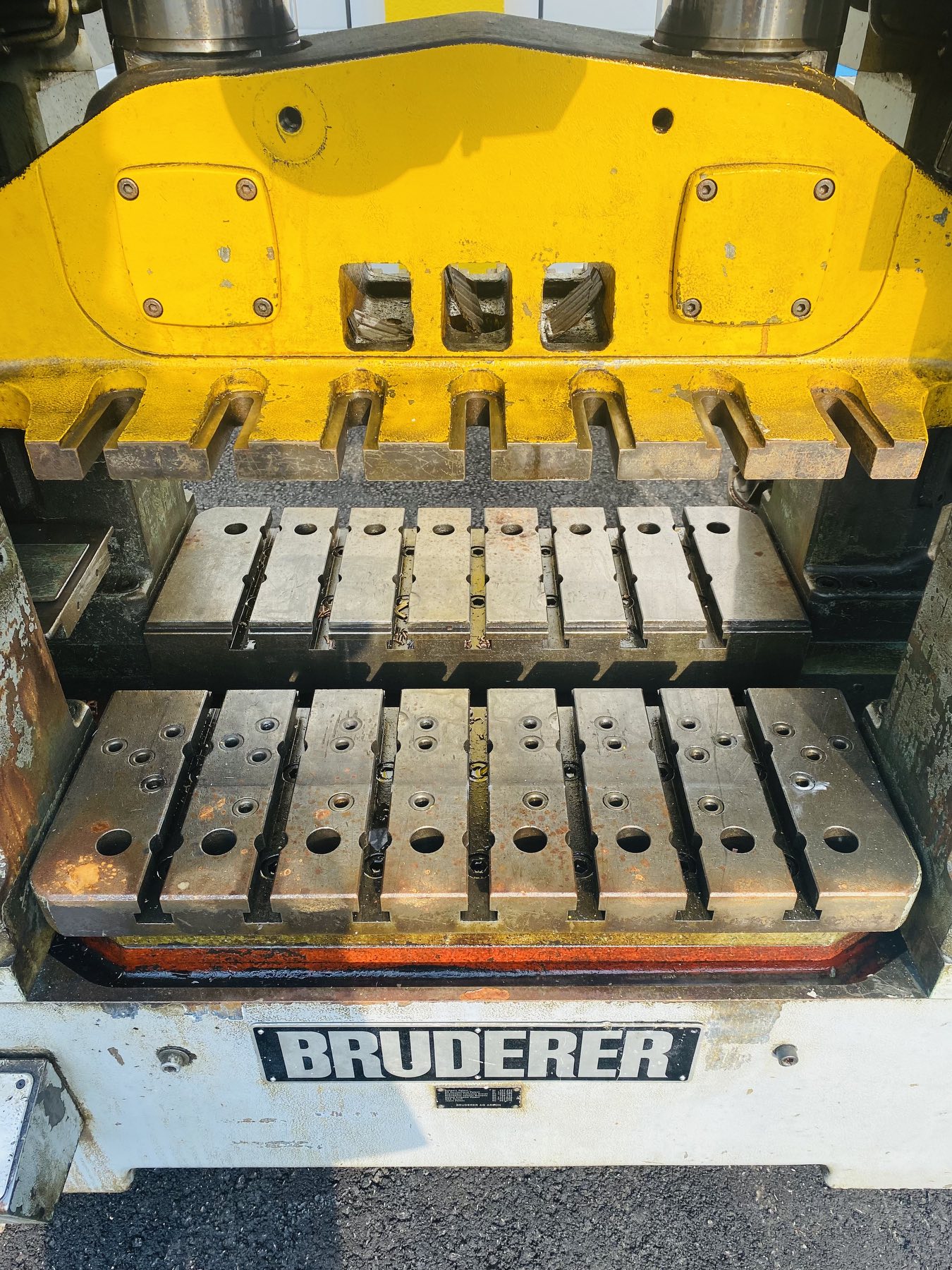

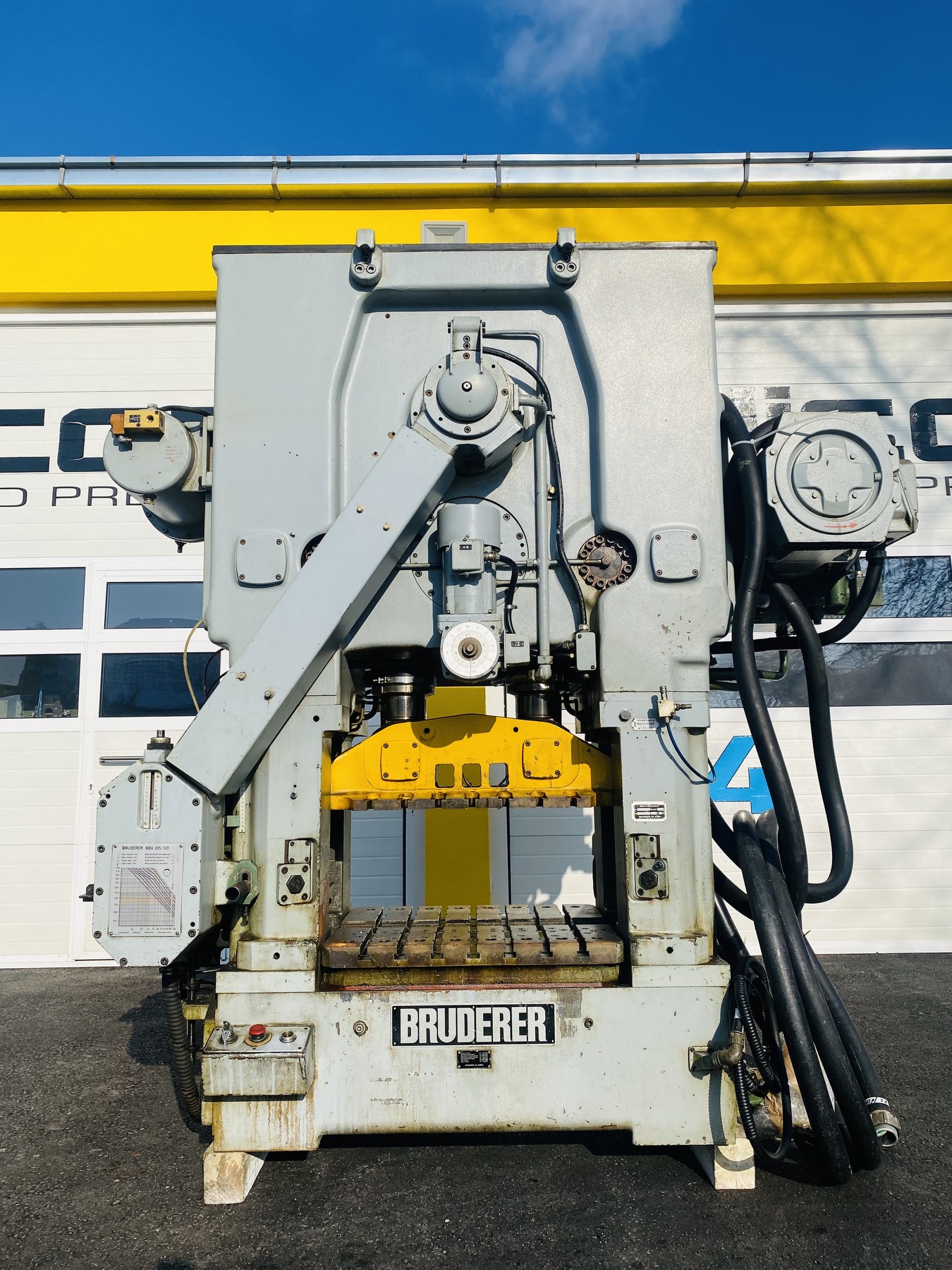

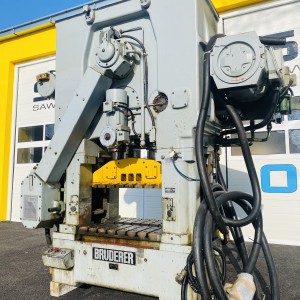

Bruderer BSTA 50

$1.00 $1.00
Sold By: Silicon
  • Bruderer Automatic Precision Punching Press.
  • Type: BSTA 50.
  • Max. Pressure: 500 kN (50 T).
  • Adjustable stroke: 16; 19; 25; 32; 38; 44; 51.
  • Fitted with Bruderer feed unit BBV 205/120.
  • Max. strip width: 200 mm.
  • Max. strip thickness: 6 mm.
  • Max. feeding pitch: 120 mm.
Out of stock
SKU: Bruderer BSTA 50
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Max. Pressure: 500 kN (50 T).

Year of production: 1979.

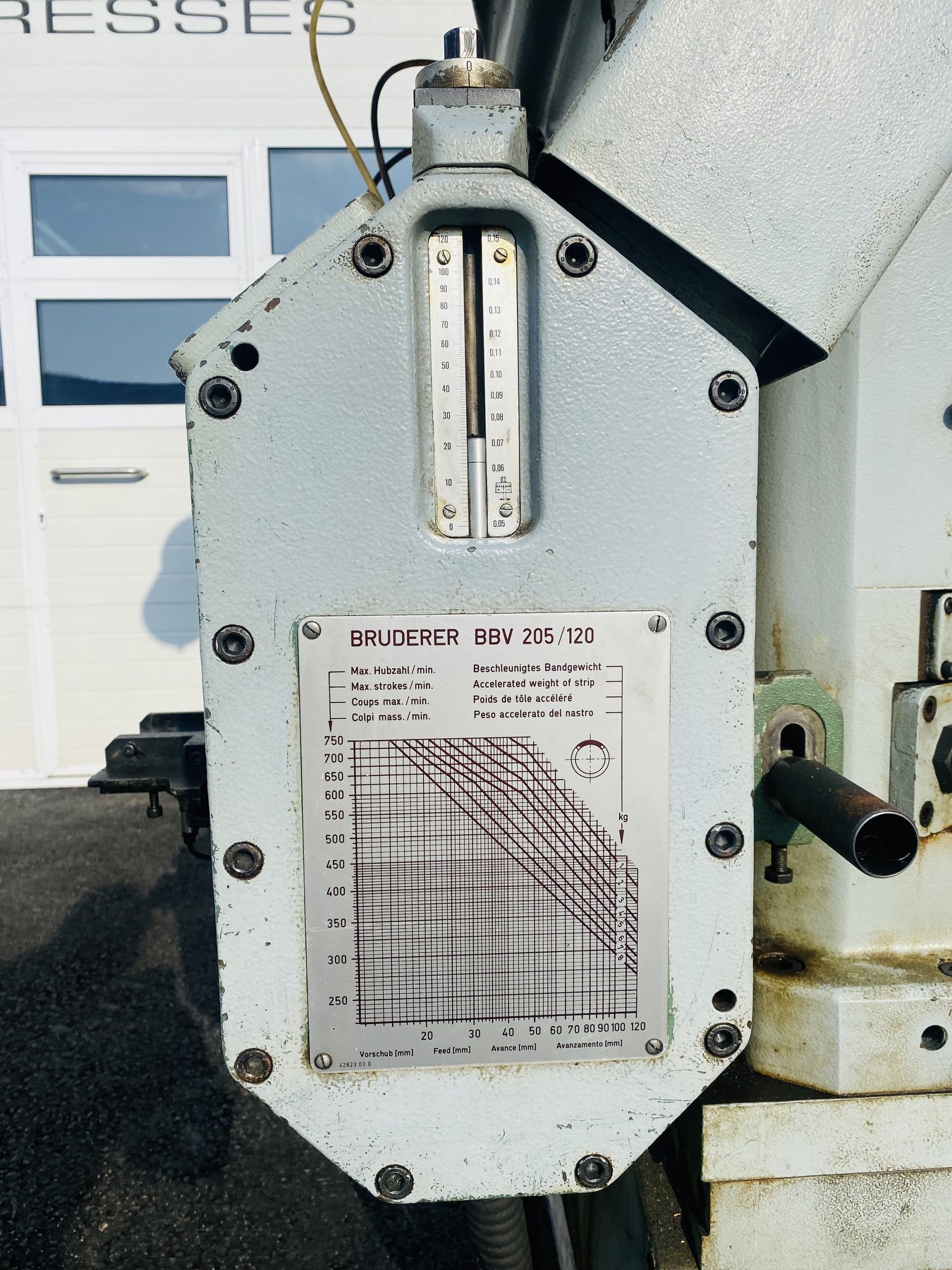

Fitted with roller-gripper feed unit BBV 205/120 on right-hand side.

Max. strip width: 200 mm.

Max. feeding pitch: 120 mm.

Adjustable stroke: 16; 19; 25; 32; 38; 44; 51.

Ram height adjustment: 60 mm.

Max. Tool width clearance between columns: 770 mm.

Max. Strip clearance width: 200 mm.

Bed opening: 730 x 250 mm.

Connected load: 28 kw.

Freqency: 50/60 Hz.

Machine dimensons: H 3040 x W 2710 x D 1820 mm.

Weight of machine: cca. 7800 kg.

Electrical cabinet and control.

Oil pump. Oil cooler.

Fitted with spring feet dampers.

Sound insulating cabinet.
