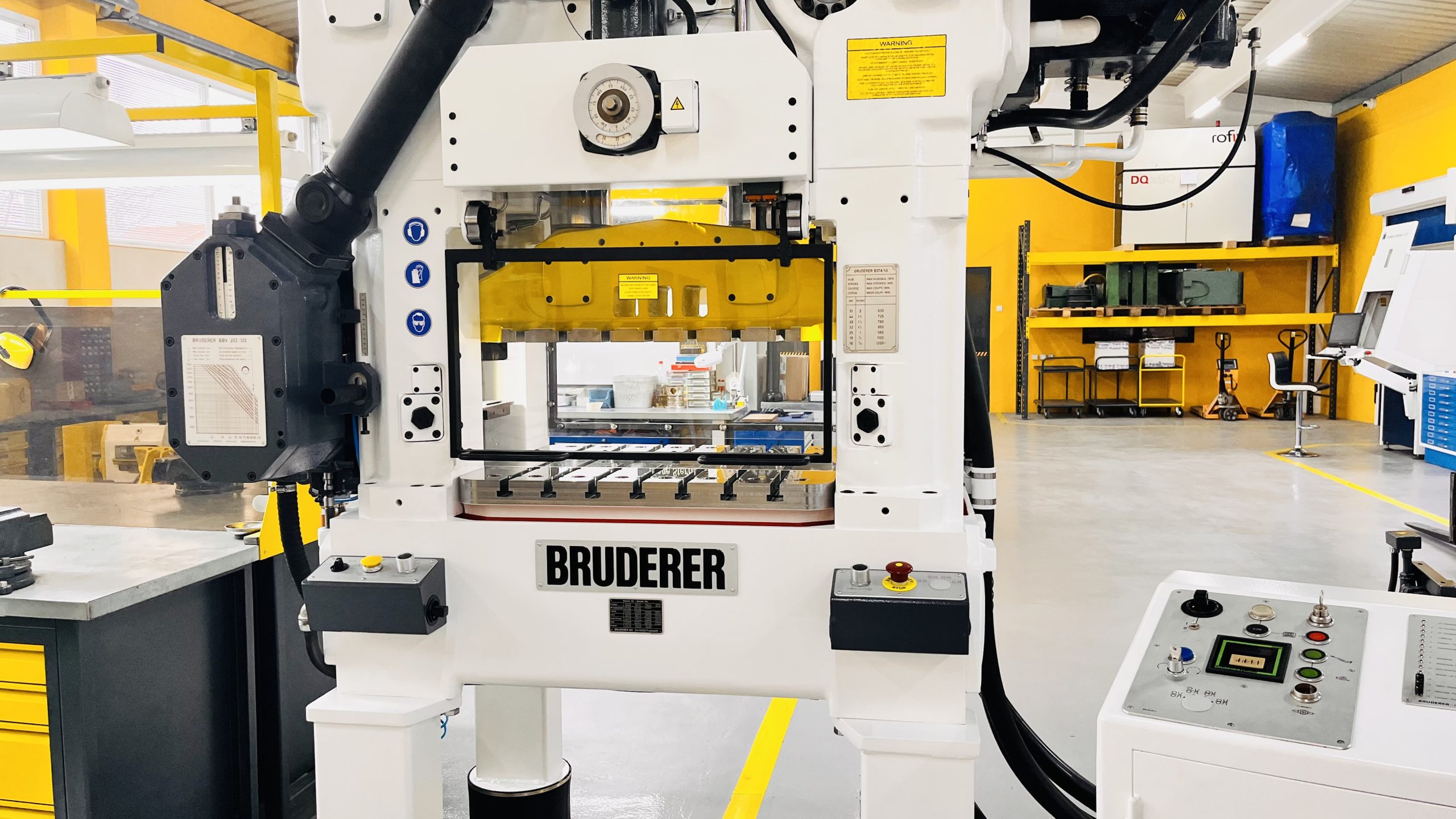

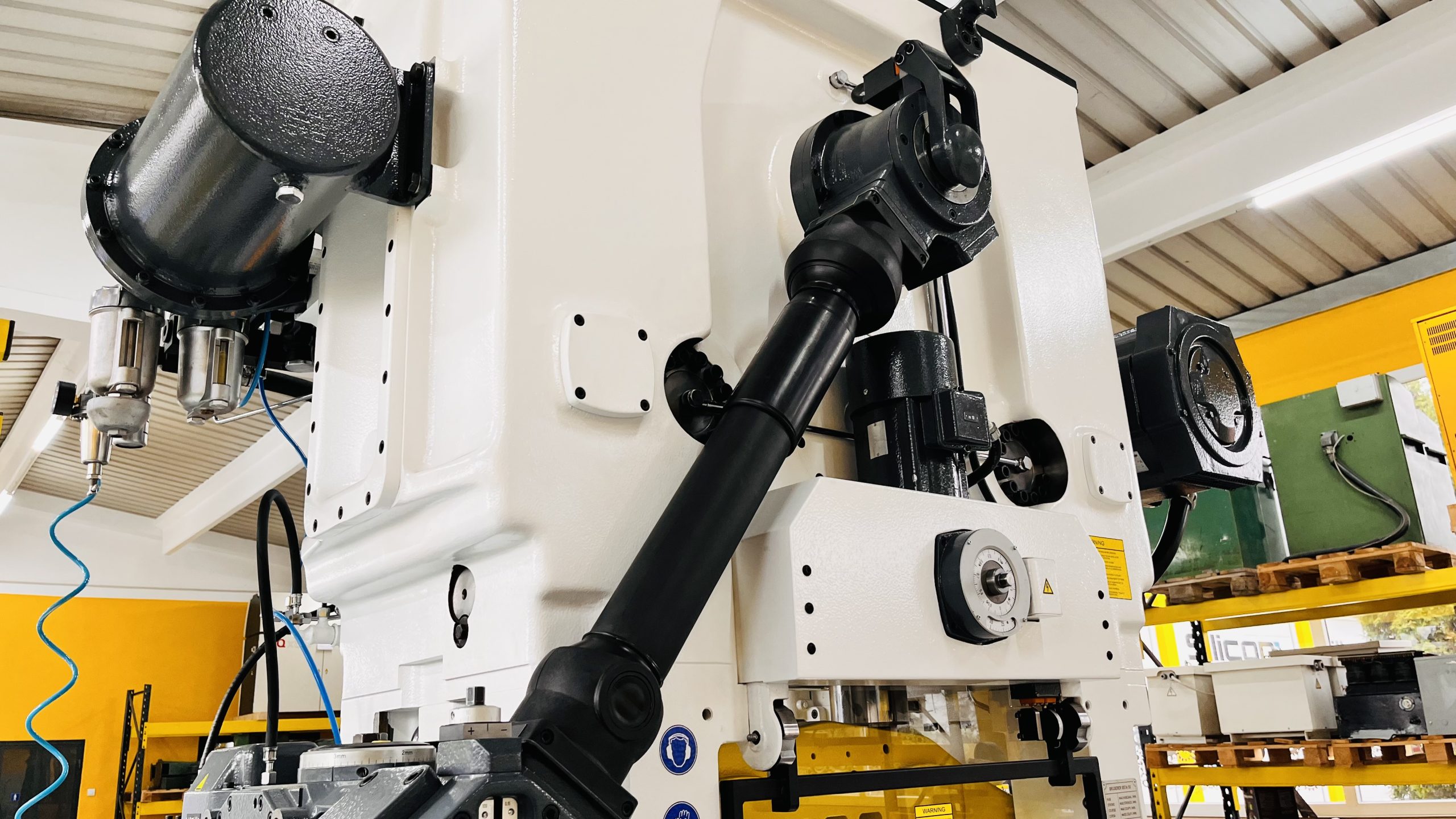

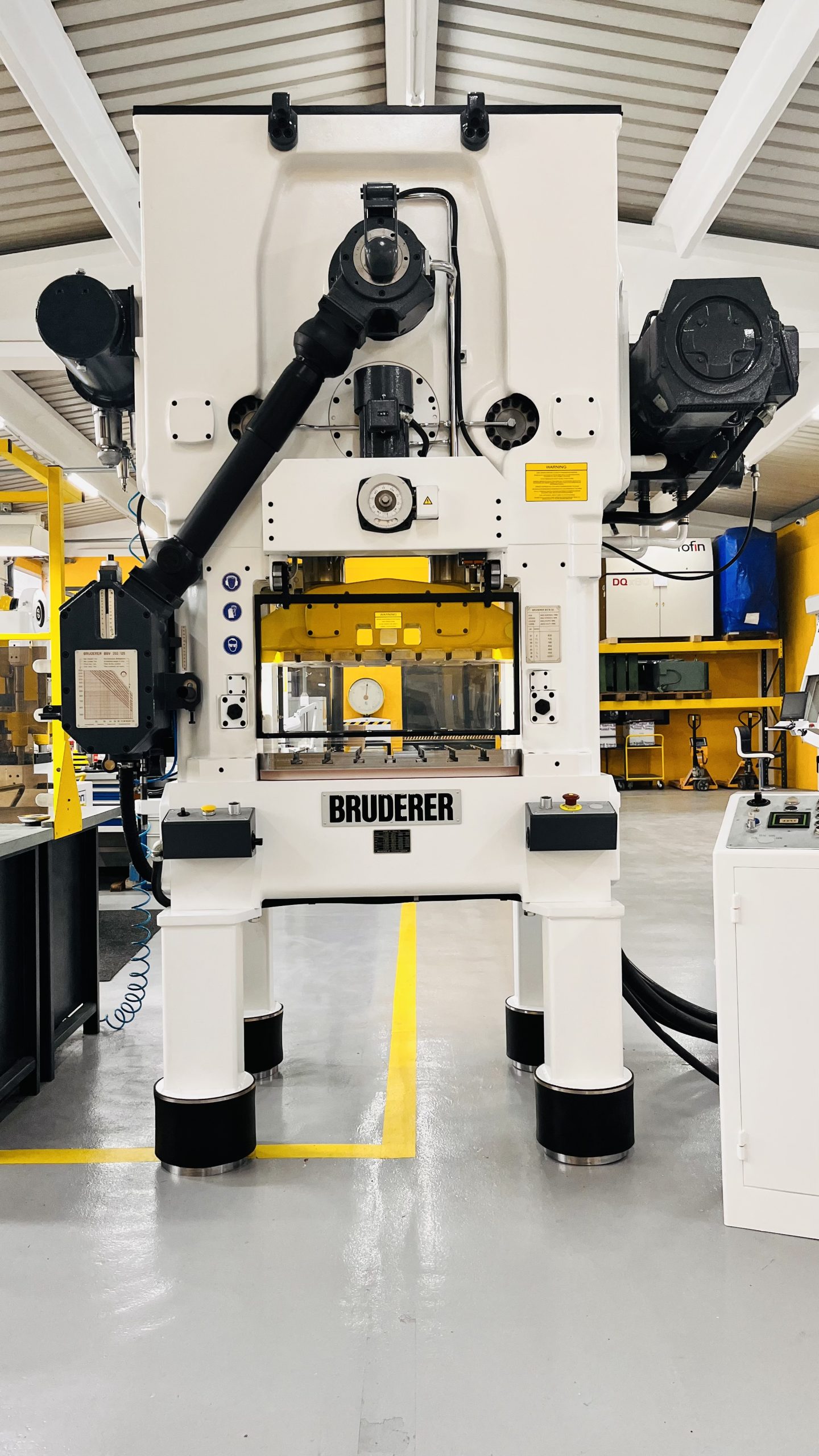

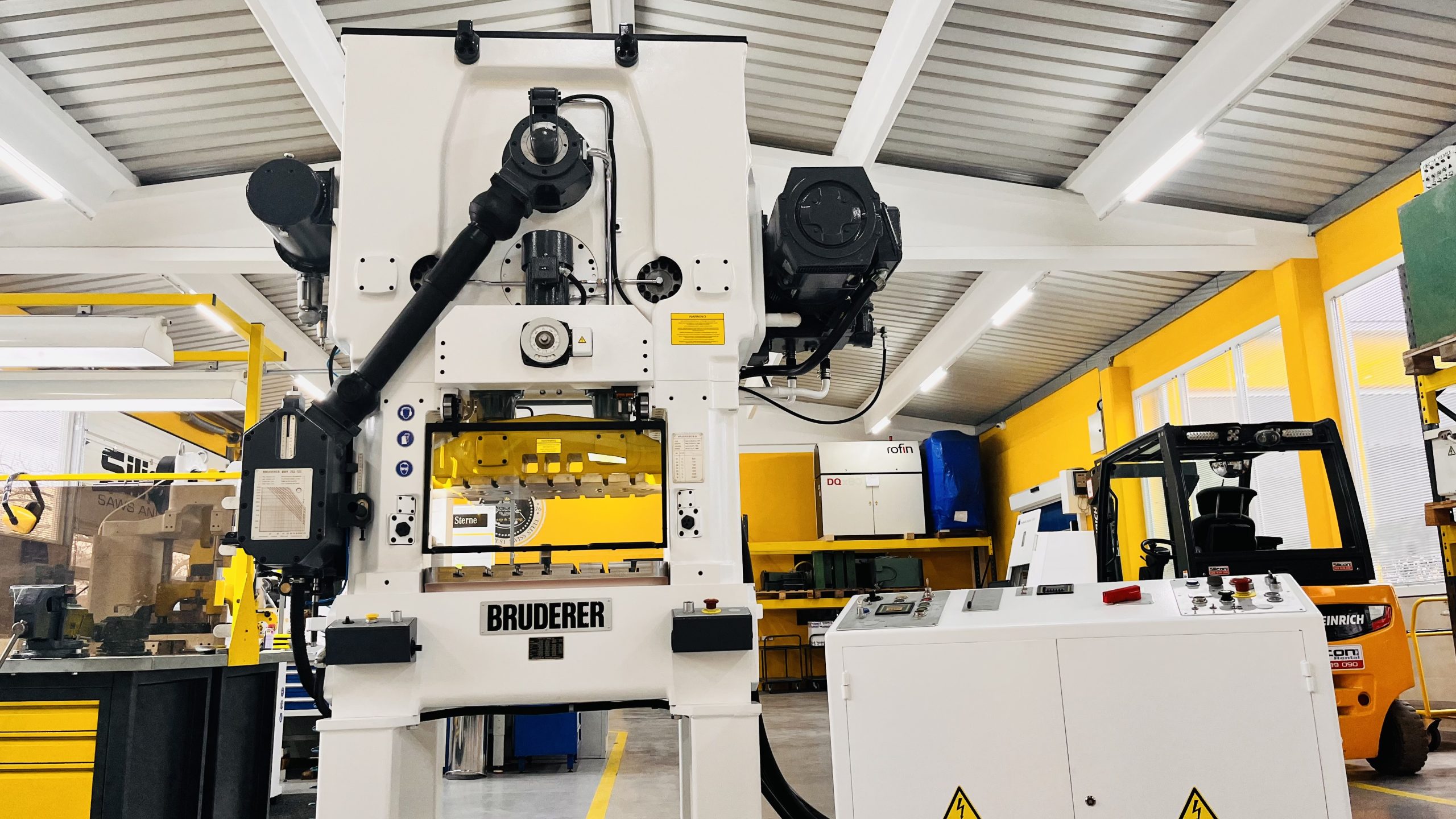

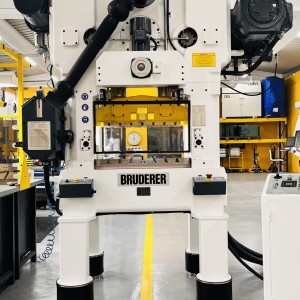

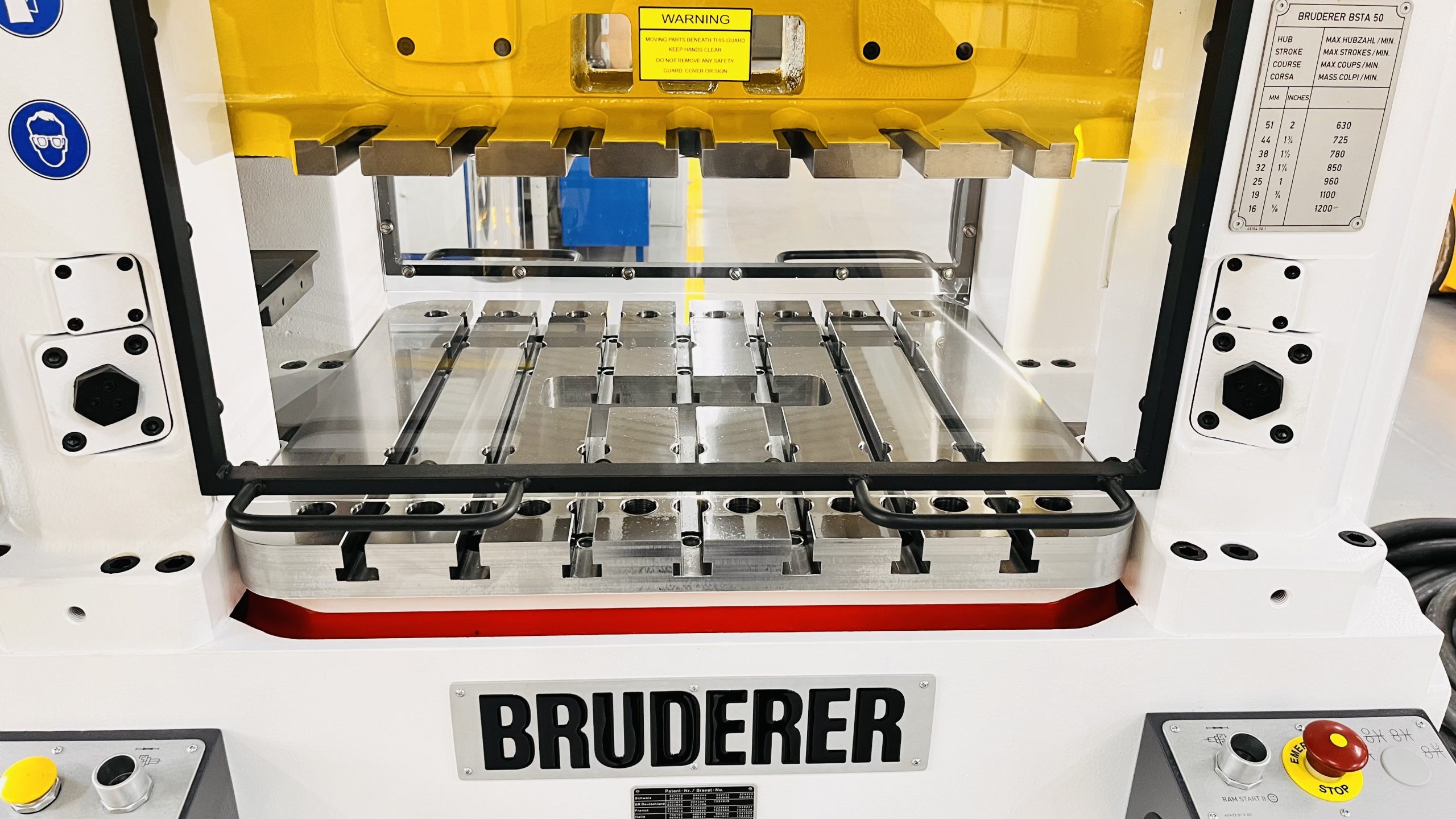

BRUDERER BSTA 50 High Speed Automatic Punching Press

Max. Pressure: 500 [kN] (50 [T]).
Speed range: 100 – 1200 [spm].
Year of production: 1984/2022.

In stock
SKU: Bruderer BSTA 50
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Call for pricing

Hour-meter: 4438 h

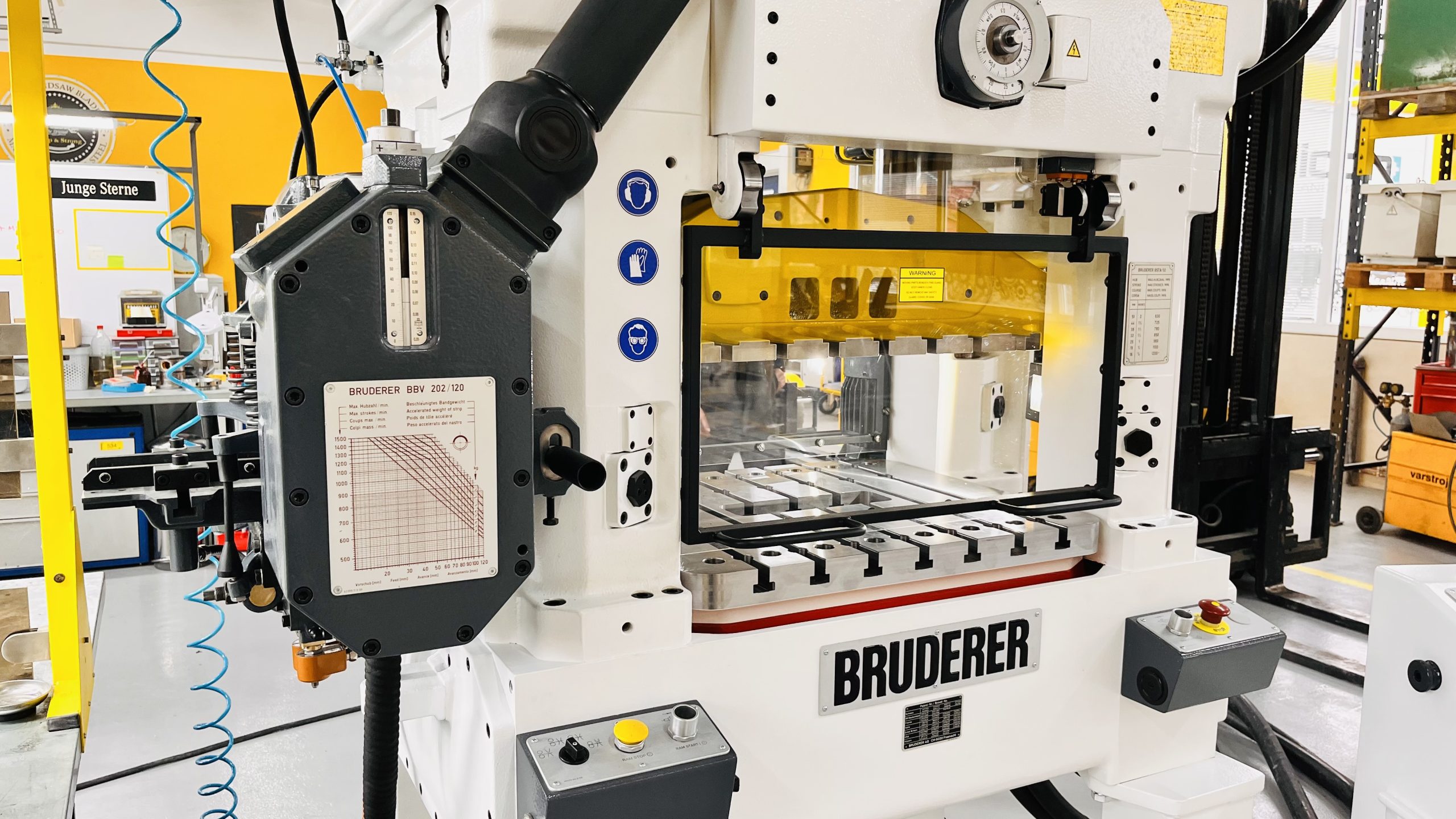

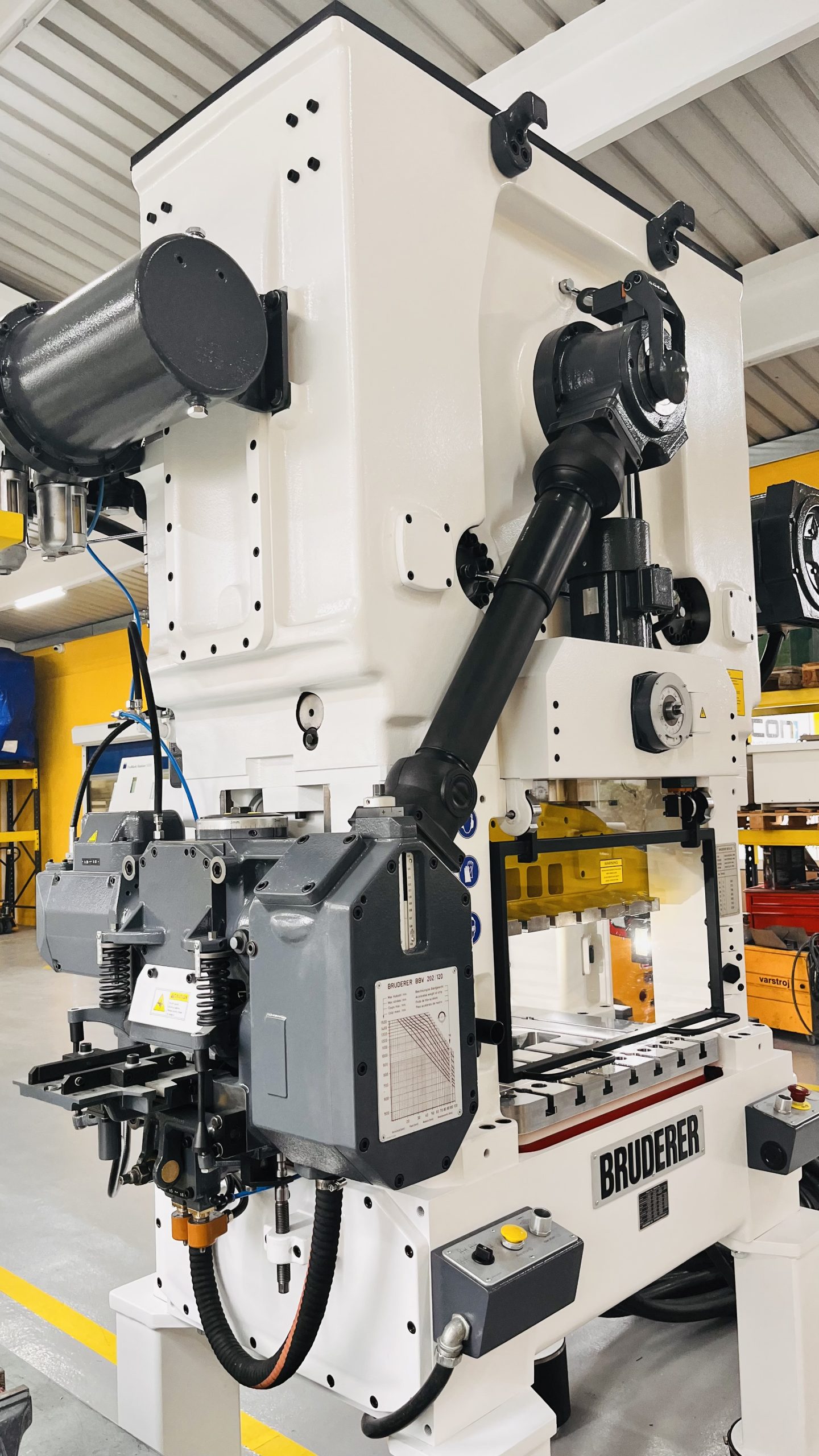

Fitted with roller-gripper feed unit BBV 202/120 on left-hand side.
Max. strip width: 203 [mm].
Max. strip thickness: 6 [mm].
Max. feeding pitch: 120 [mm].
Feeding cycle: 180 Degrees.
Strip running height from clamping plate: 60 – 140 [mm].
Adjustable stroke: 16; 19; 25; 32; 38; 44; 51 [mm].
Ram height adjustment: 64 [mm].
Bolster (Clamping) plate dimensions: 760 x 650 [mm].
Hole in table: 310 x 90 [mm].
Bed opening: 730 x 250 [mm].
Max. Tool width clearance between columns: 770 [mm].
Max. Strip clearance width: 203 [mm].
Connected load: 28 [kW].
Power 380 [V] 50 [Hz].
Control voltage: 24 [V] [AC].
Machine dimensions: H 3040 x W 2710 x D 1820 [mm].
Weight of machine: cca. 8400 [kg].

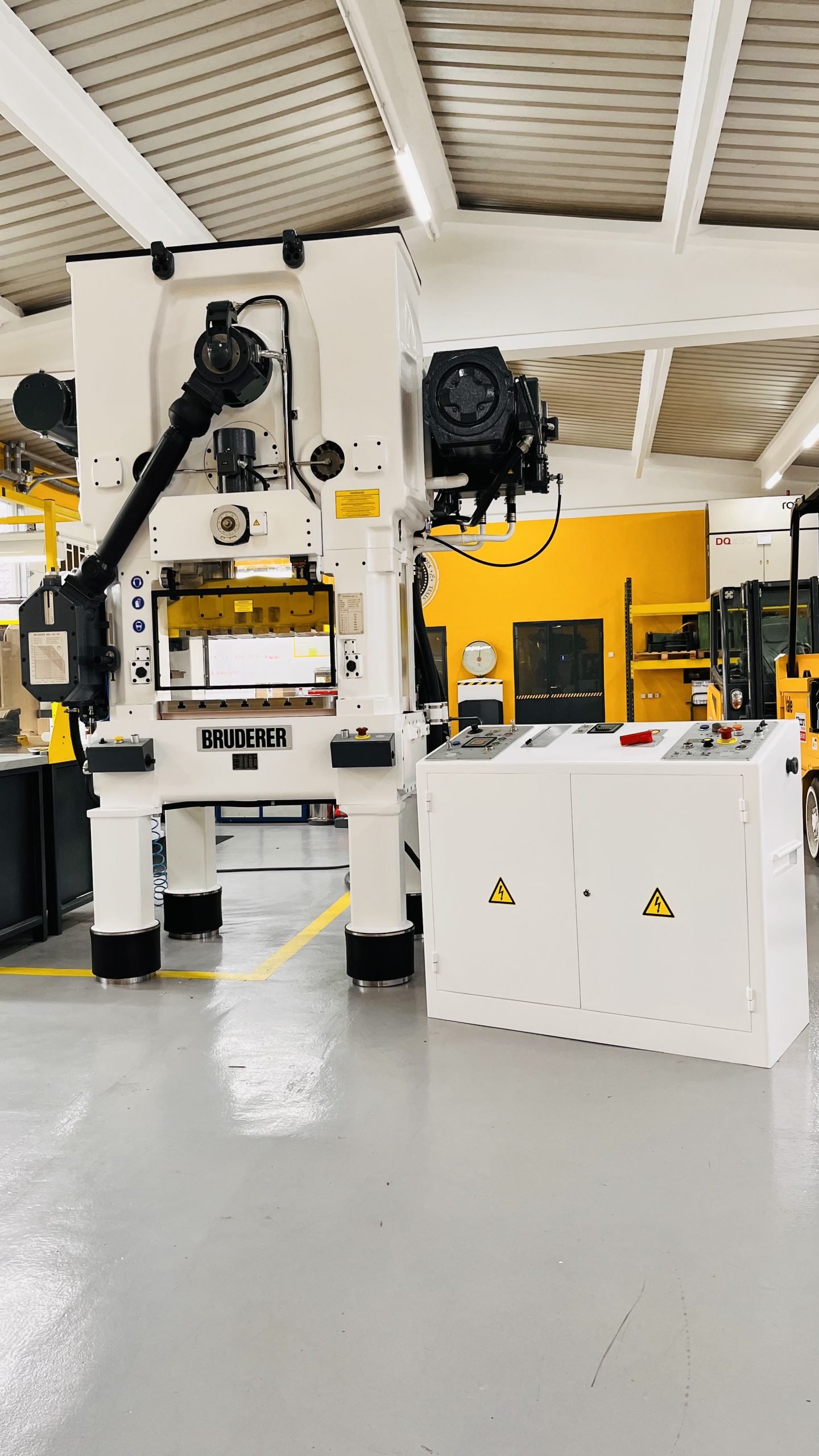

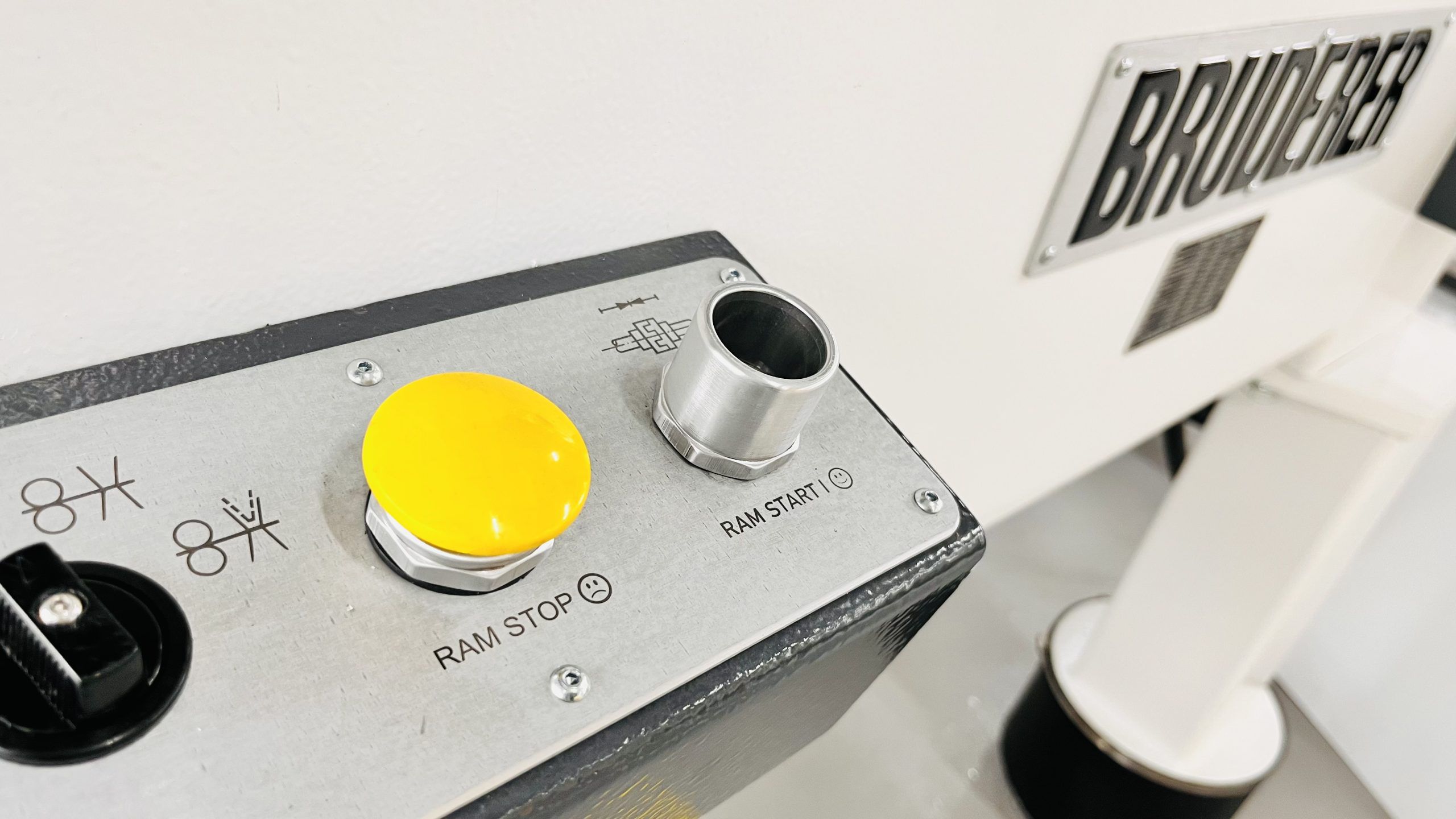

Electrical cabinet and control.
Fault monitoring system.
Oil pump. Oil cooler.
Fitted with spring feet dampers.
Front and rear safety guards with inspection glass.
Also on stock high speed presses: Mabu, Schaal and other Bruderer models.
