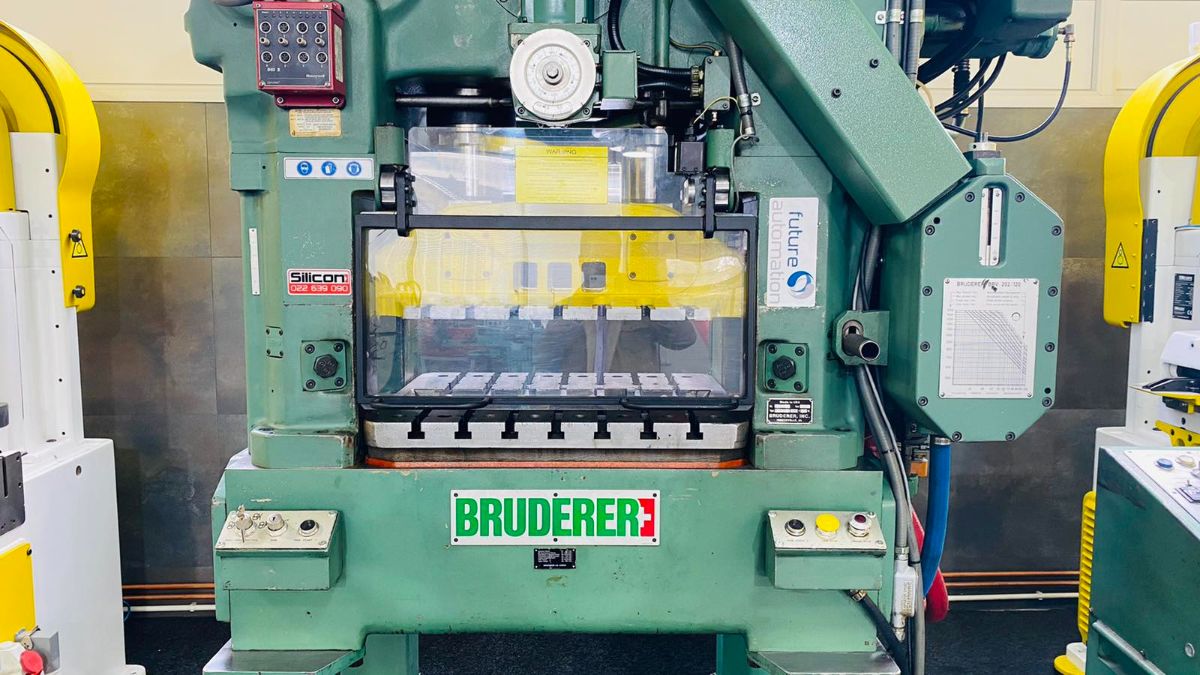

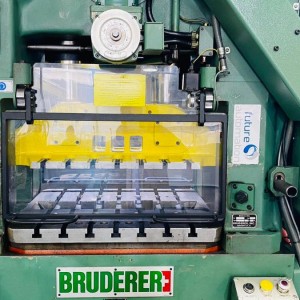

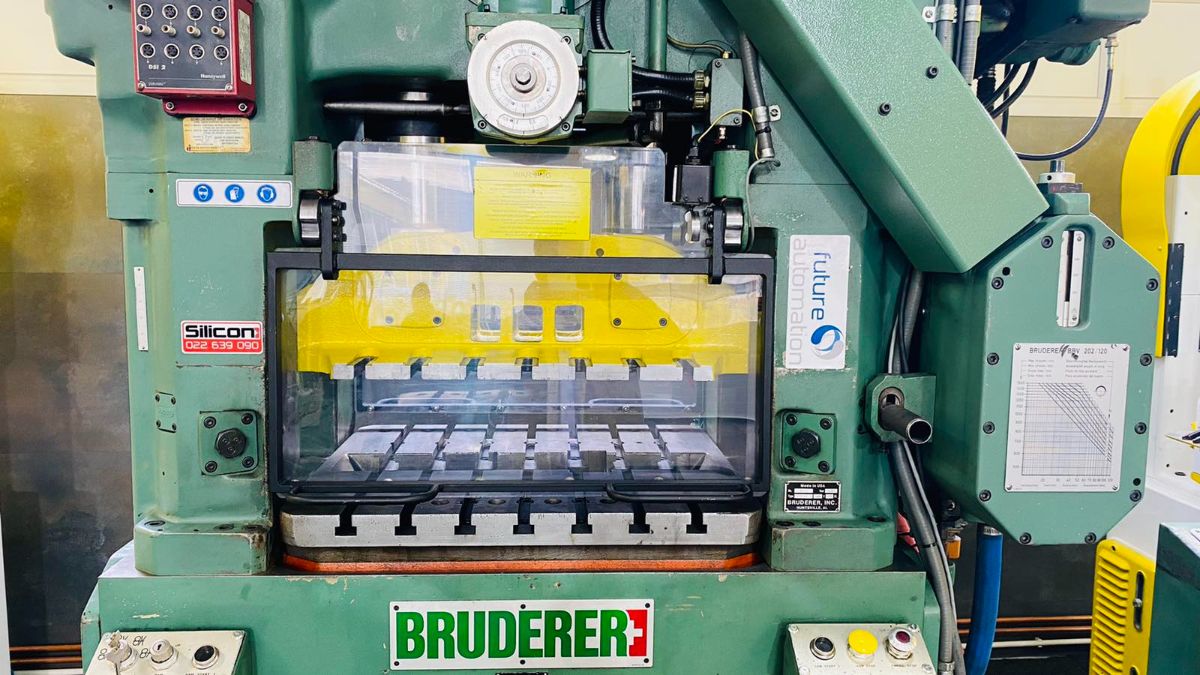

Bruderer BSTA 60 II High Speed Automatic Punching Press

Speed range: 100 – 1200 [spm].
Year of production: 1983.

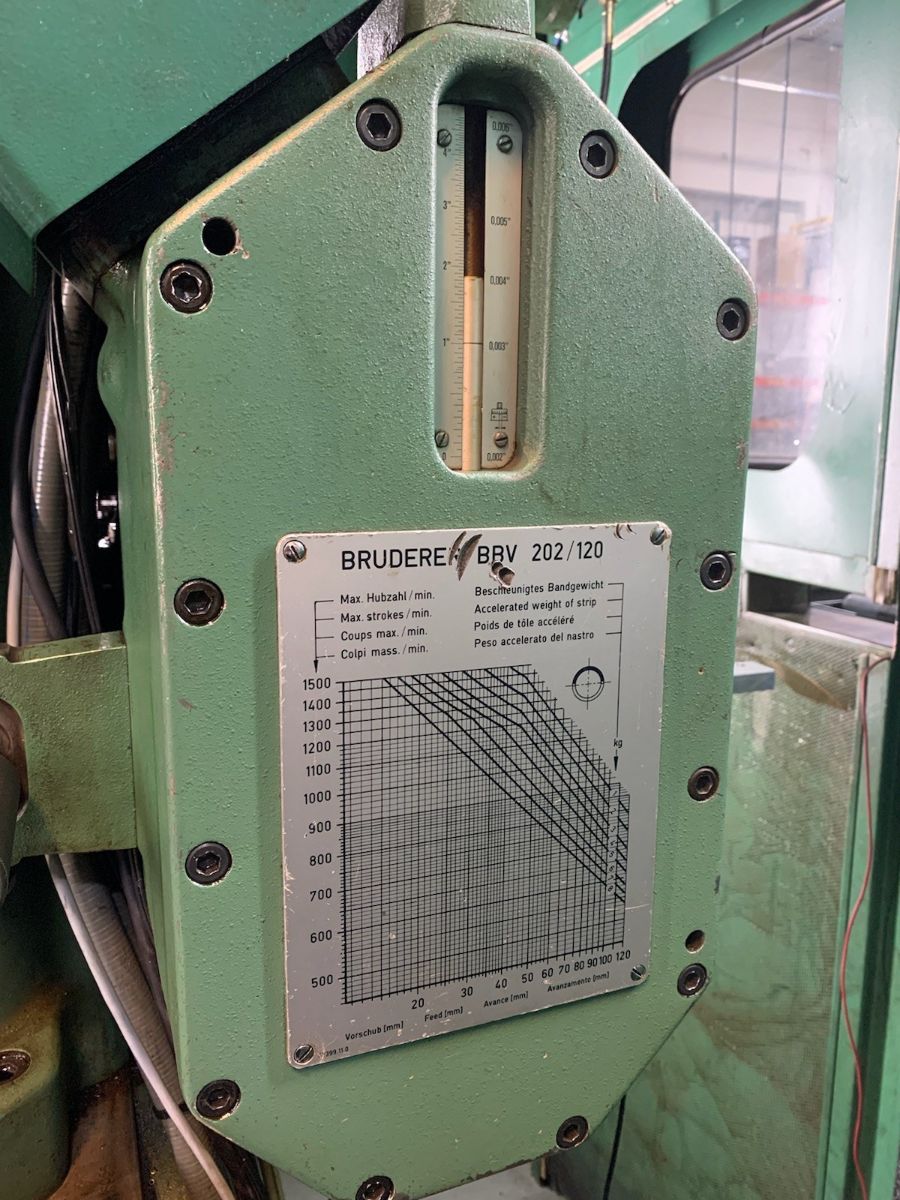

Fitted with roller-gripper feed unit BBV 202/120 on right-hand side.
Max. strip width: 203 [mm].
Max. strip thickness: 6 [mm].
Max. feeding pitch: 120 [mm].
Adjustable stroke: 16; 19; 25; 32; 38; 44; 51.
Ram height adjustment: 60 [mm].
Max. Tool width clearance between columns: 770 [mm].
Max. Strip clearance width: 203 [mm].
Bed opening: 730 x 250 [mm].
Connected load: 28 [kw].
Frequency: 50/60 [Hz].
Machine dimensions: H 3040 x W 2710 x D 1820 [mm].
Weight of machine: cca. 7800 [kg].

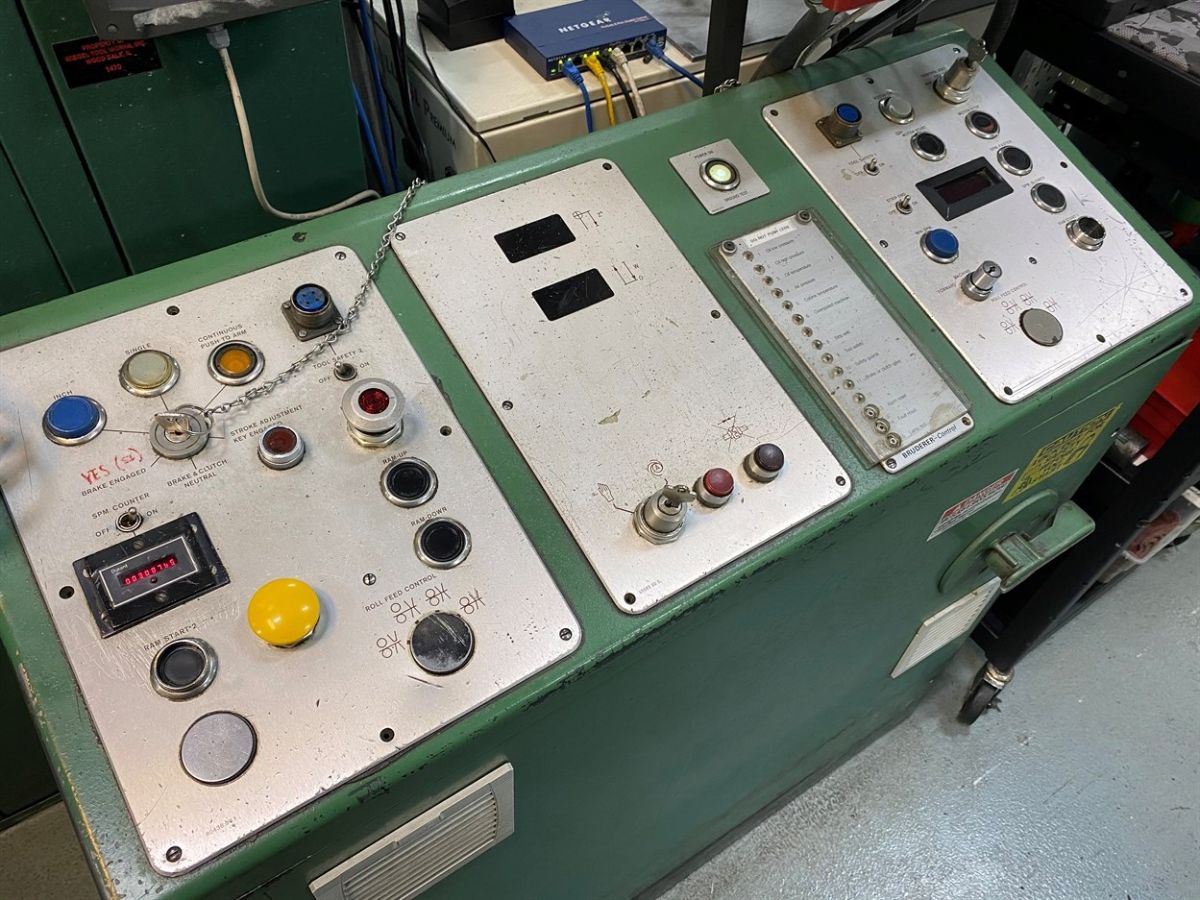

Electrical cabinet and control.

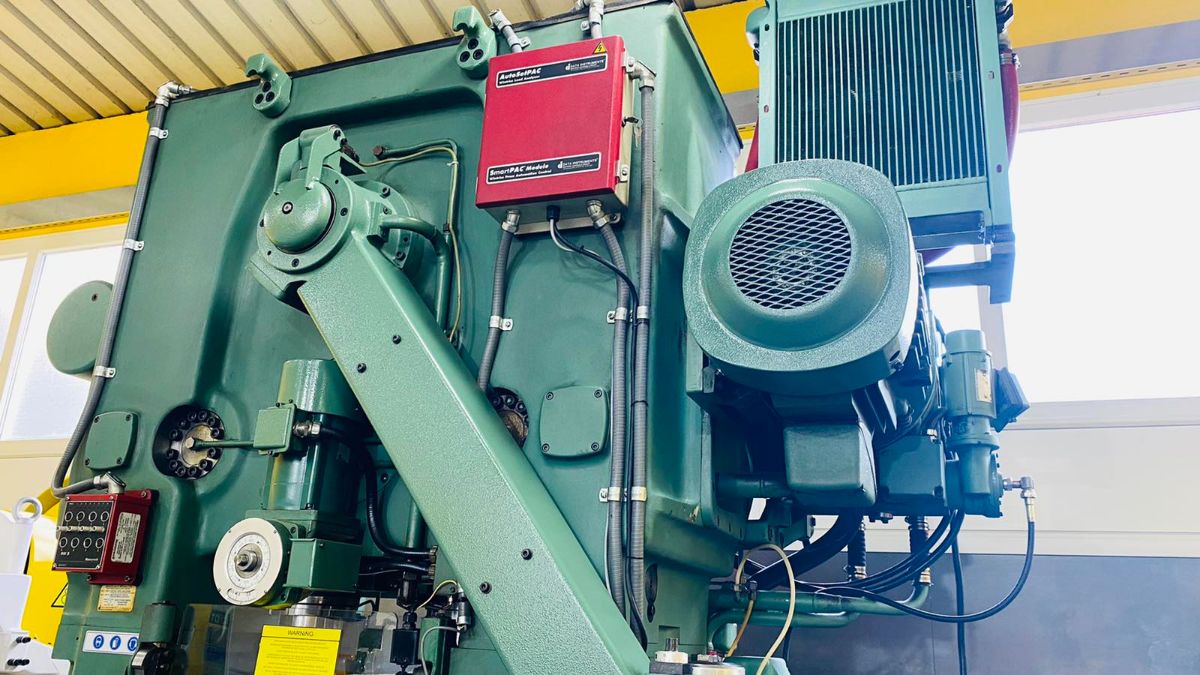

Oil pump. Oil cooler.
Fitted with spring feet dampers.
Front and rear safety guards with inspection glass.

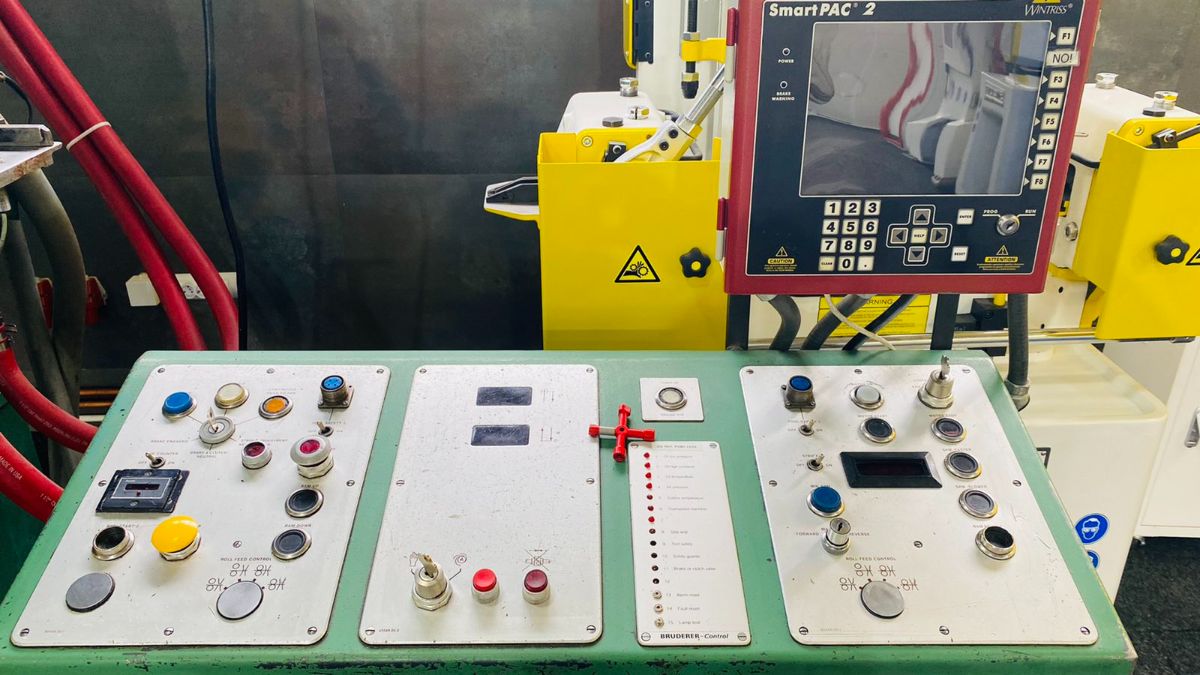

Fitted with Wintriss SmartPAC 2 press control.
SmartPAC 2 is a smart modular interface for multiple press automation functions including die protection and programmable cam switch.
