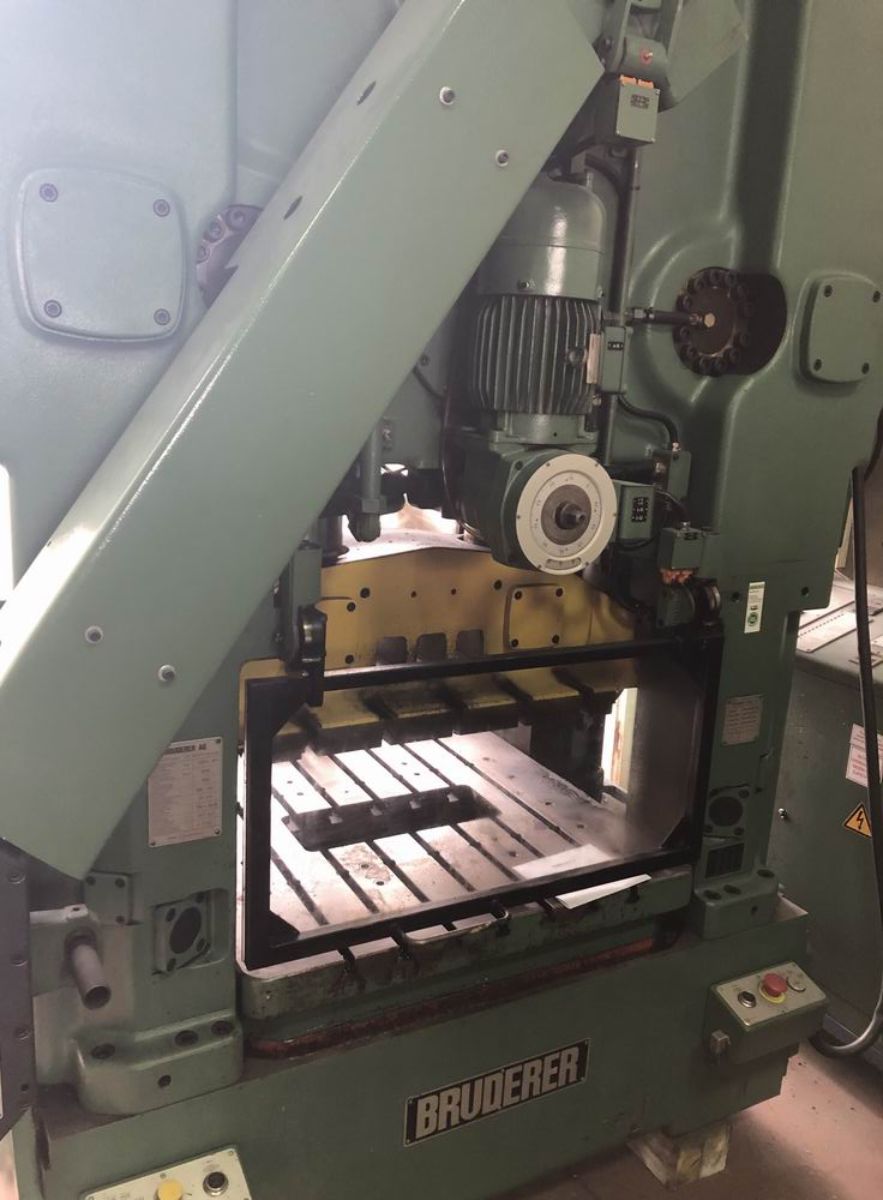

BRUDERER BSTA 80

$1.00 $1.00
Sold By: Silicon

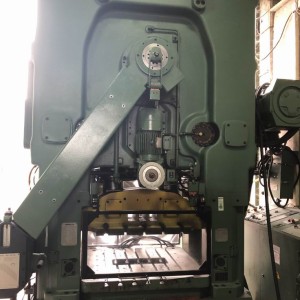

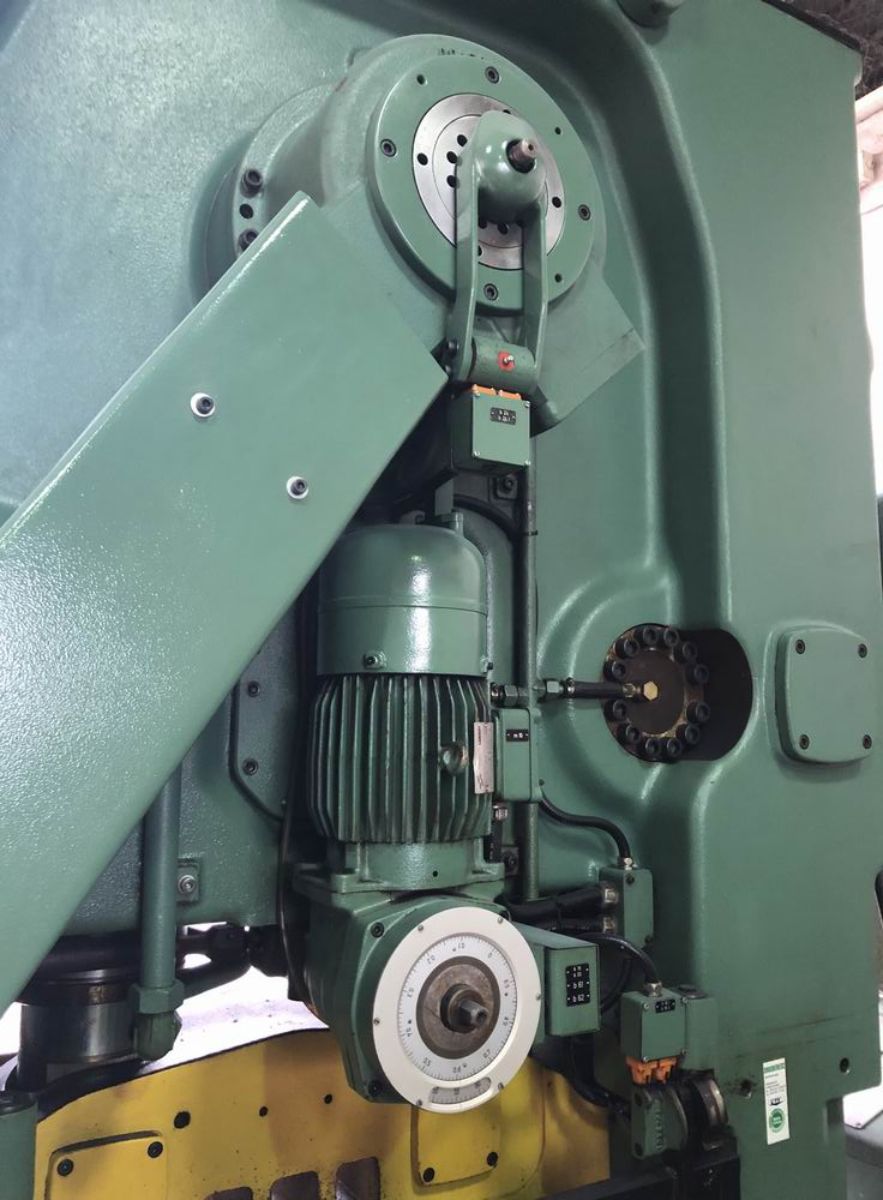

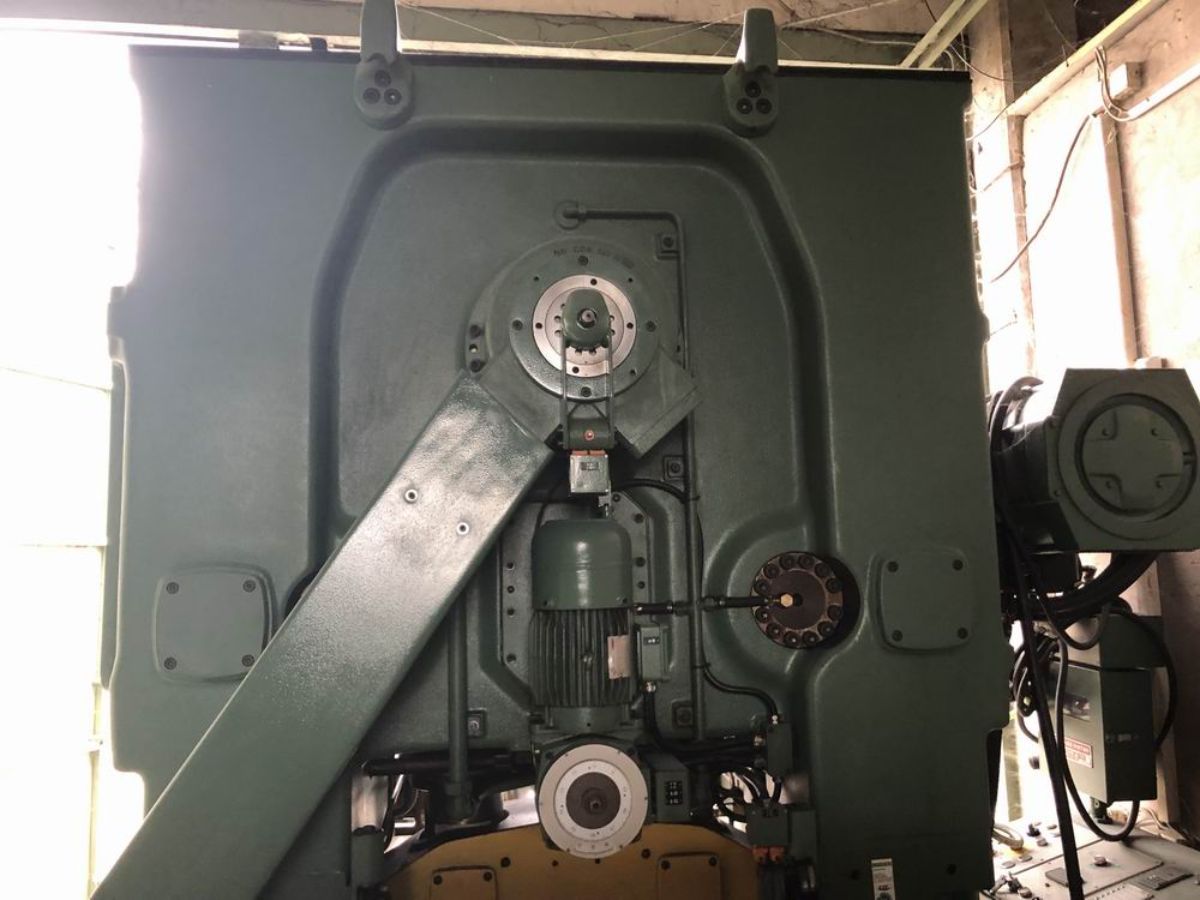

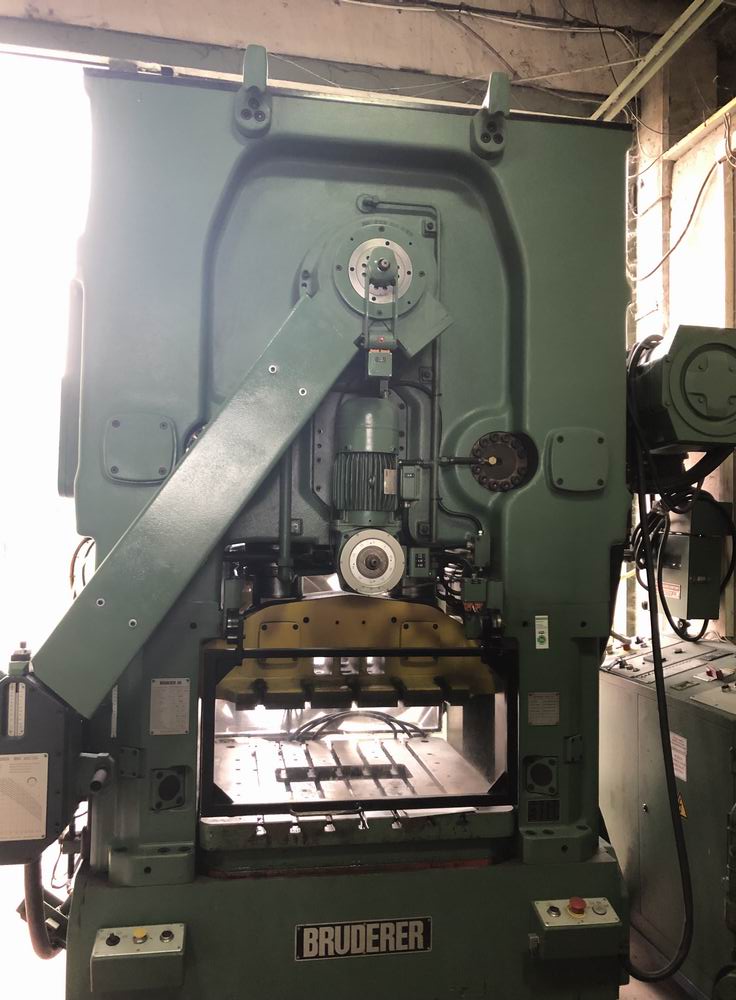

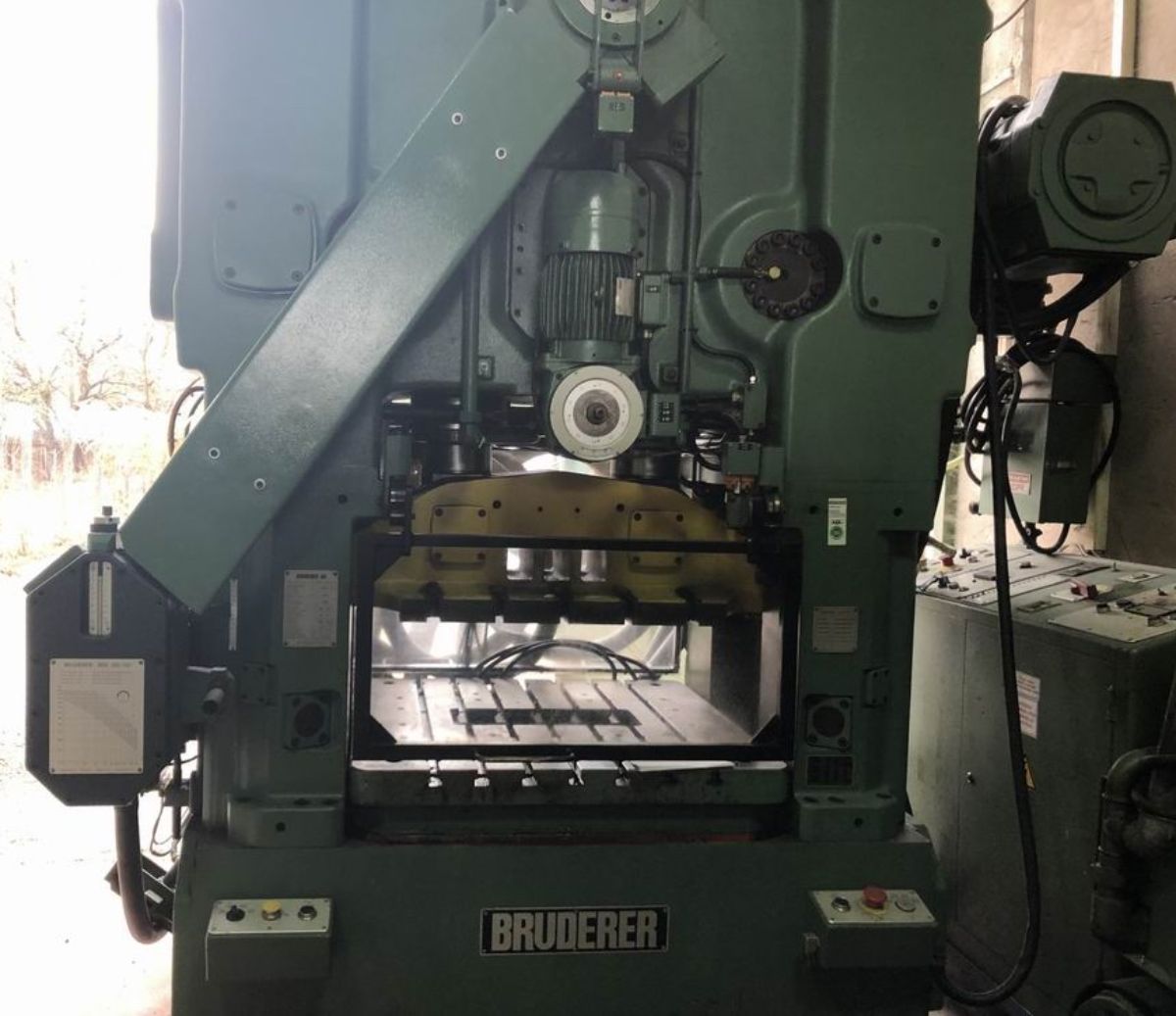

  • Bruderer BSTA 80H
  • High speed press
  • Made in Switzerland
  • Production Year 1988
  • Machine in full working condition
Out of stock
SKU: BRUDERER BSTA 80
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now
  • Max. pressure: 80 Tons 800 kN
  • Speed: -Max.: 1000 1/min -Min.: 100 1/min
  • Mains voltage (with protective conductor): 220 V, 380 V, 440 V
  • Mains frequency: 50 Hz, 60 Hz
  • Power supply: 43 kW
  • Control voltage AC: 24 V
  • Compressed air connection: 6-10 bar
  • Ram position adjustment: 76 mm
  • Average mass of tool upper part: 600 kg
  • Bolster area: -L-R: 950 mm -F-B: 910 mm
  • Ram area: -L-R: 760 mm -F-B: 510 mm
  • Max. tool width clearance (L-R): 970 mm
  • Strip inlet height: -Max.: 160 mm -Min.: 70 mm

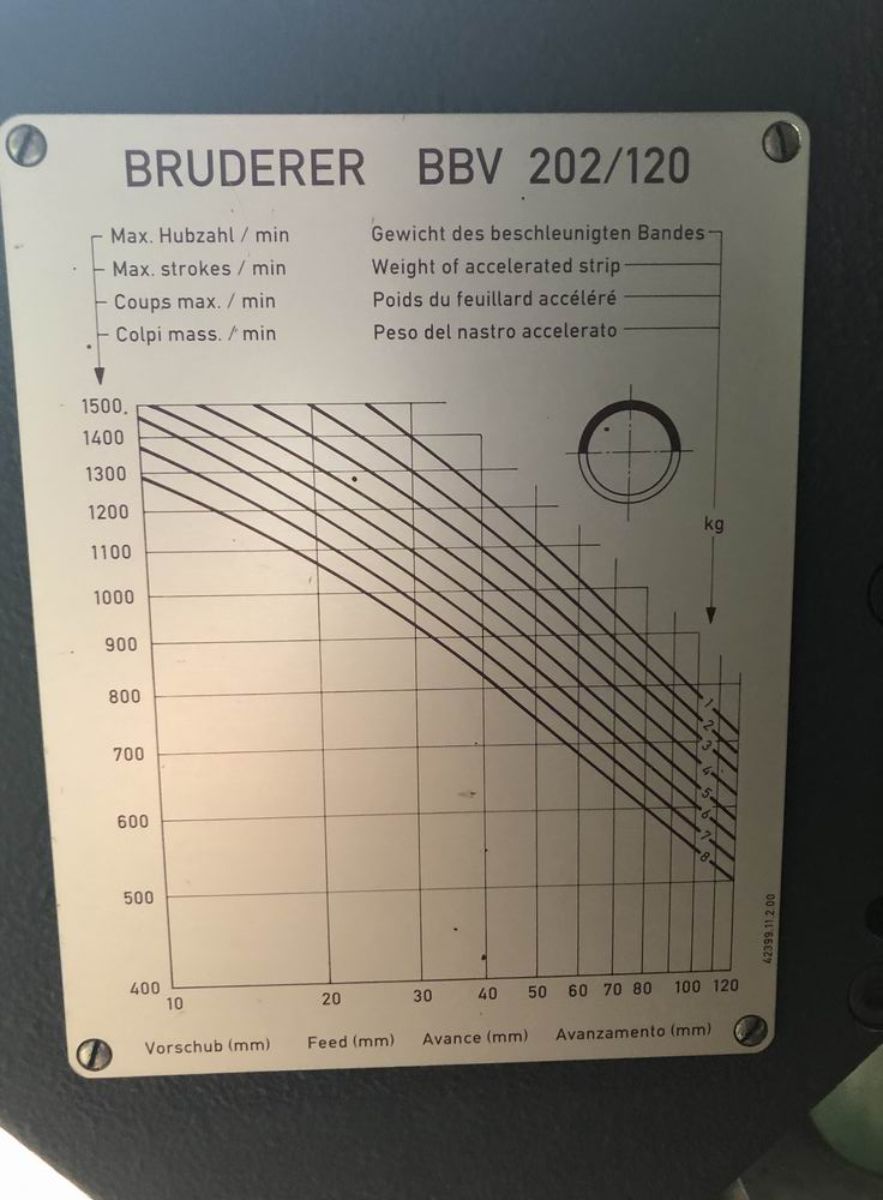

  • Feeder bruderer on left side BBV 202/120
  • Max. strip inlet width: 202 mm
  • Strip feed pitch: 0-120 mm
  • Bed opening: -L-R: 920 mm -F-B: 320 mm
  • Machine dimensions:

-Length: 2834 mm -Width: 1742 mm -Height: 3460 mm -Mass complete with 1 BBV 202: approx. 17.500 kg

  • Dimensions of electrical cabinet:

-Length: 1200 mm -Width: 500 mm -Height: 1025 mm -Mass: approx. 250 kg

  • Tonnage meter Toledo onboard
