BRUDERER BSTA 20 E press

$1.00 $1.00
Sold By: Silicon

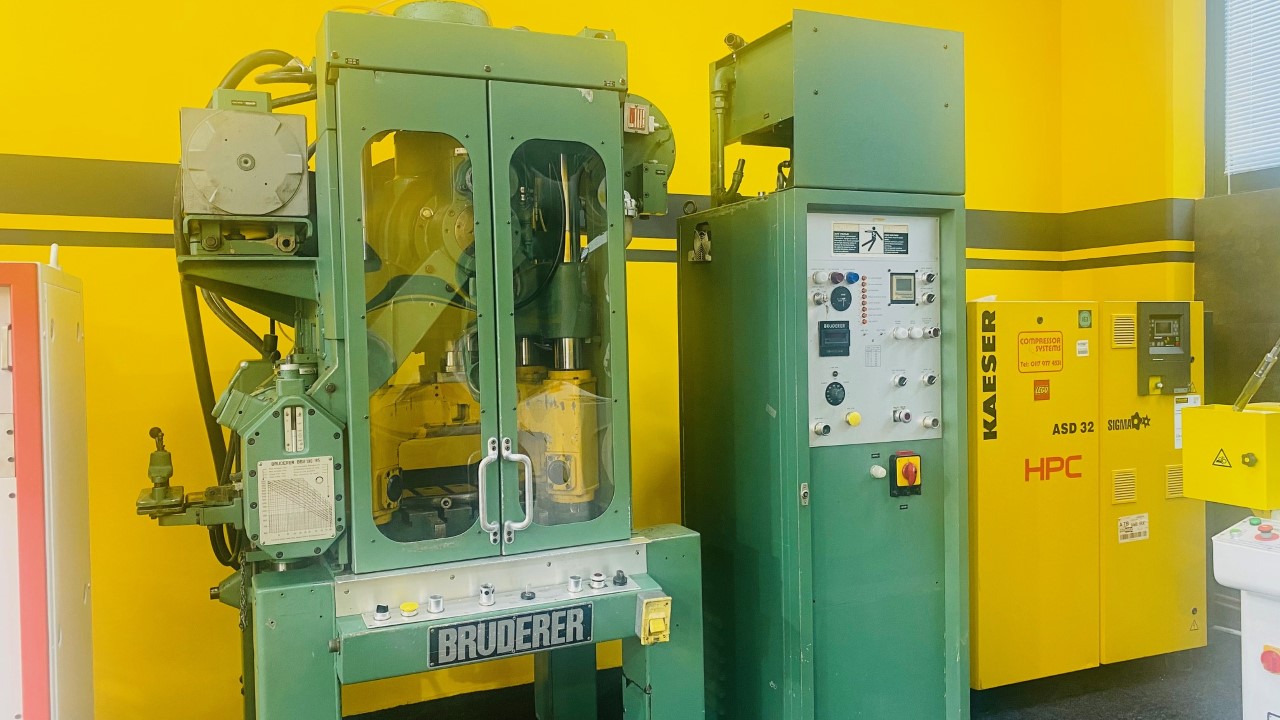

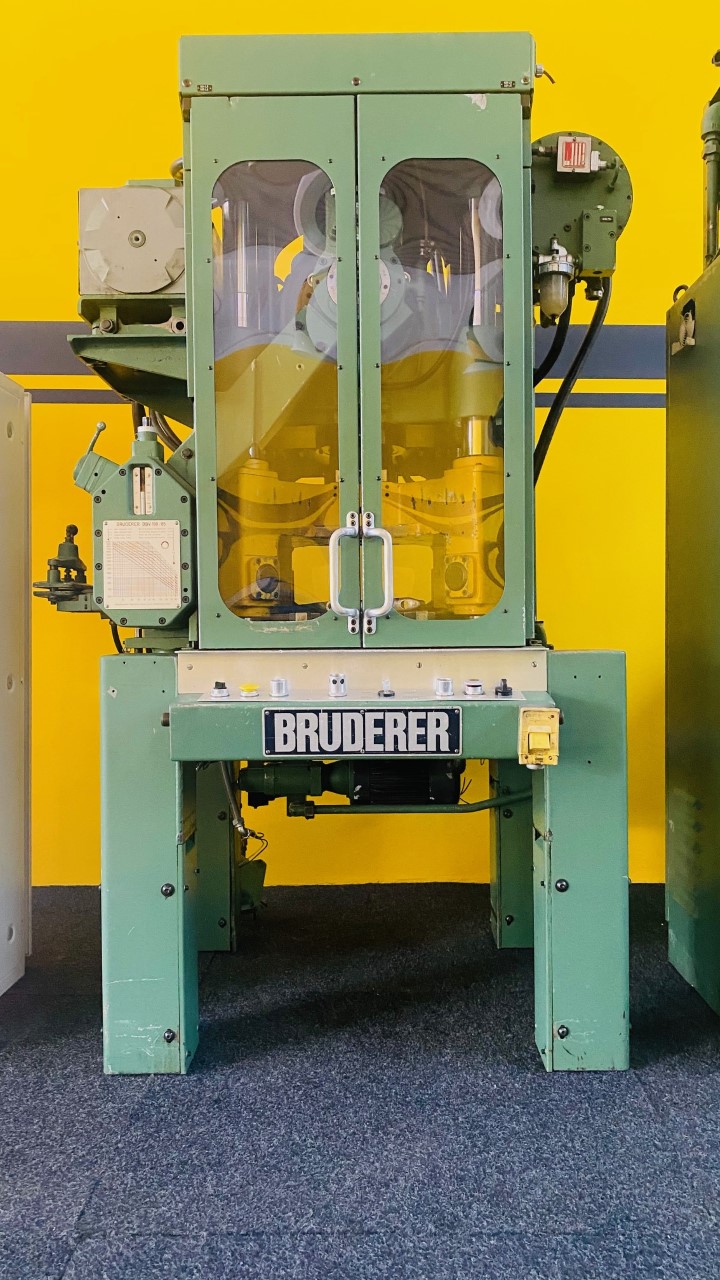

  • Bruderer Automatic Precision Punching Press
  • Type BSTA 20 E.
  • Max. Pressure: 200 kN (20 T).
  • Speed range: 100 – 1800 spm.
  • Year of manufacute: 1985.
  • Adjustable stroke: 8; 9.5; 13; 17; 21; 25; 32; 38.
  • Fitted with roller-gripper feed unit BBV 190/85.
  • Max. strip width: 160 mm.
  • Max. strip thickness: 4 mm.
  • Max. feeding pitch: 85 mm.
Out of stock
SKU: BRUDERER BSTA 20 E press
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Max. Pressure: 200 kN (20 T)

Speed range: 100 – 1800 spm

Year of production: 1985

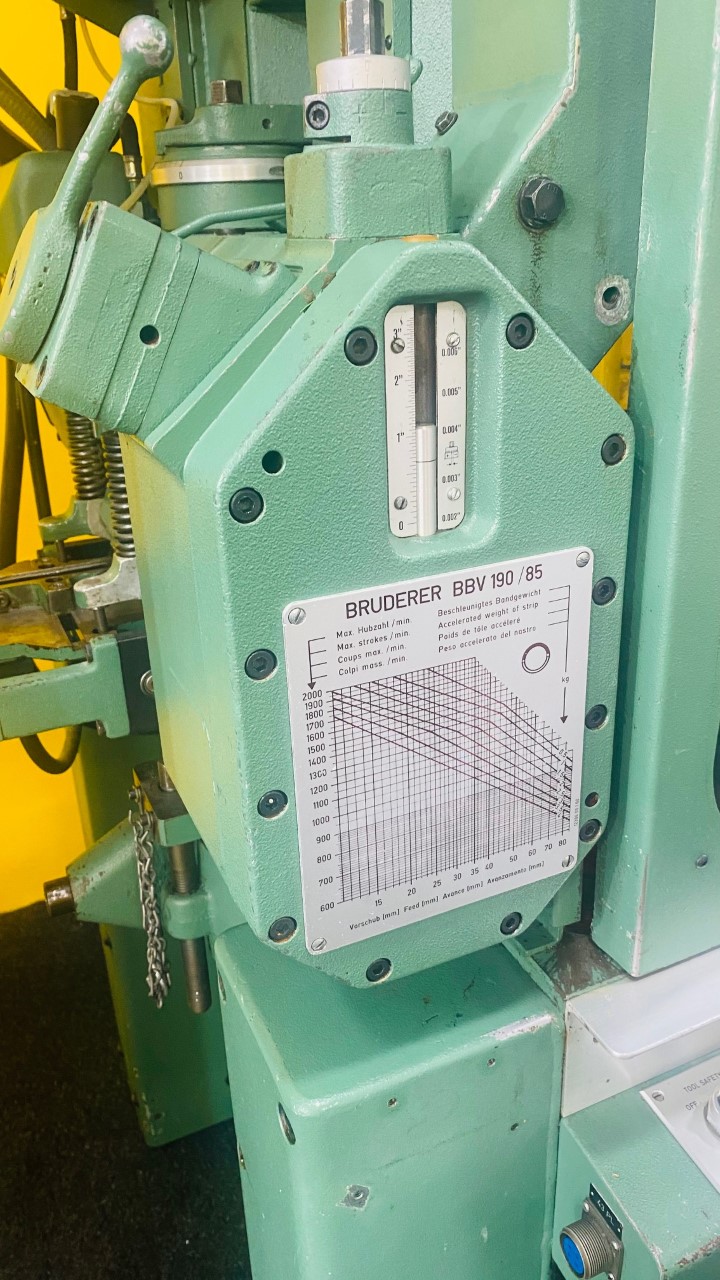

Fitted with roller-gripper feed unit BBV 190/85 on left-hand side.

Feeding cycle: 180 Deegres

Max. strip width: 160 mm

Max. strip thickness: 4 mm

Max. feeding pitch: 85 mm

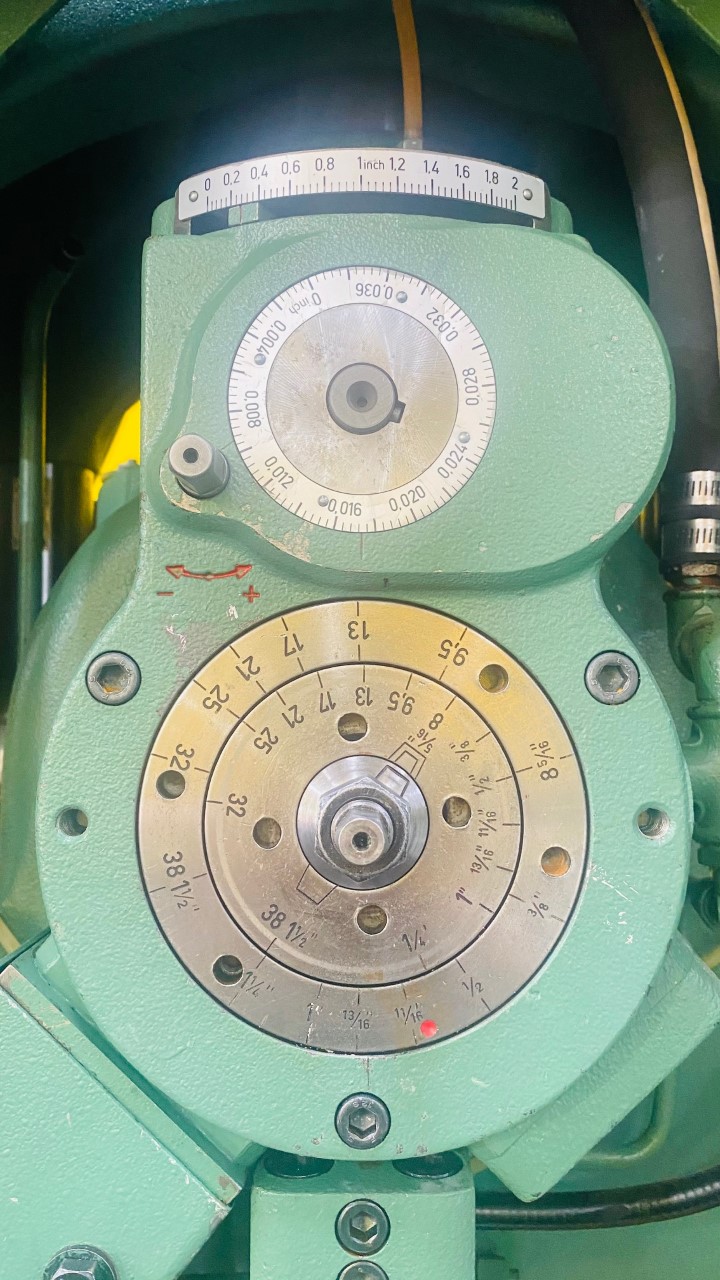

Adjustable stroke: 8; 9.5; 13; 17; 21; 25; 32; 38.

Ram height adjustment: 50 mm

Fast lifting of the ram: 40 mm

Max. Tool width clearance between columns: 380 mm

Max. Strip clearance width: 220 mm

Connected load: 20 kw

Machine dimensons: H 2325 x W 1375 x D 1115 mm

Weight of machine: cca. 3200 kg

Weight of control cabinet: cca. 420 kg

Electrical cabinet and control.

Oil pump. Oil cooler.

Fitted with spring feet dampers.

Front and rear safety guards with inspection glass.
