Schaal SEP 40

$1.00 $1.00
Sold By: Silicon

Call for pricing

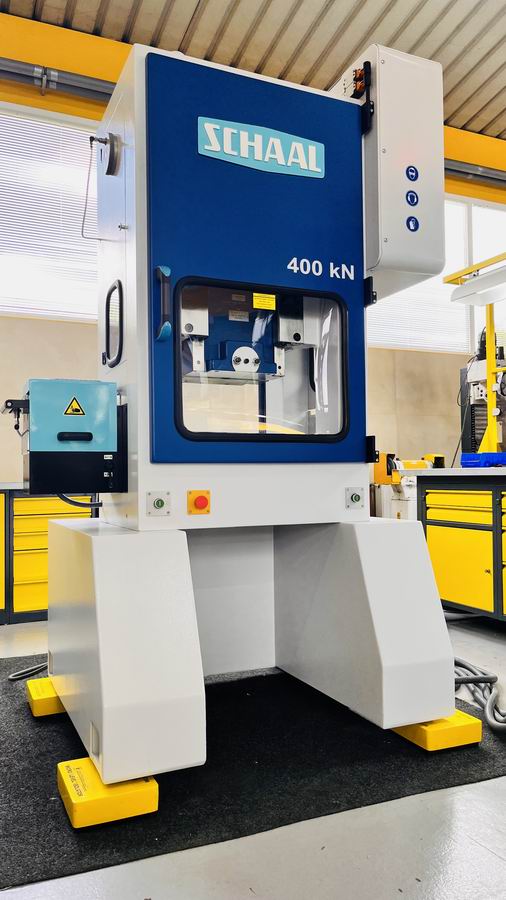

Schaal SEP 40
Automatic Punching Press.
Year of manufacture: 1993.

In stock
SKU: Schaal SEP 40
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Call for pricing

Machine completely revision in 2023
Nominal capacity: 400 [kN] (40 [t]).
Min./Max. number of strokes: 100 – 500.
Ram adjustment: 70 [mm].
Variable stroke: 8 – 70 [mm].
Ram surface area: 340 – 300 [mm].
Stroke range: 8, 10, 15, 20, 25, 31, 36, 41, 46, 50, 54, 58, 61, 64, 66, 68, 69, 70 [mm].
Table dimensions: 550 x 580 [mm].

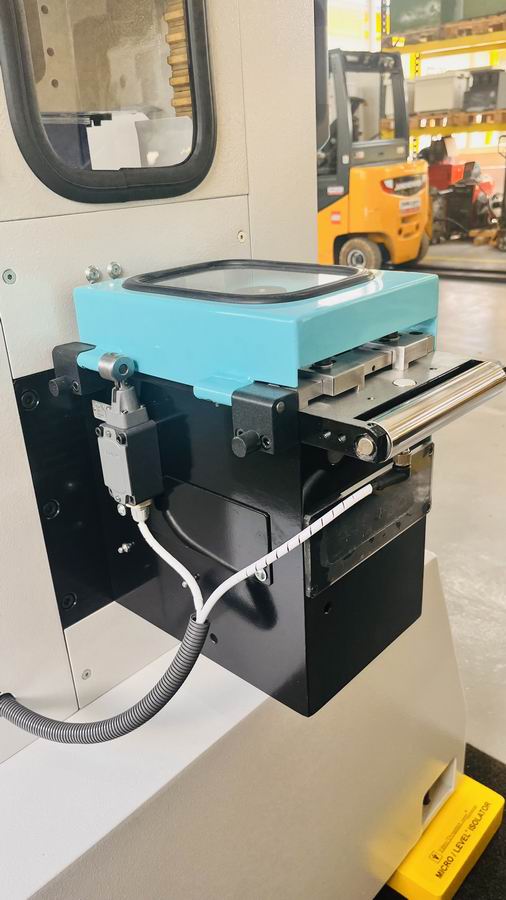

Fitted with gripper feeding device SZV 2.
Width of strip: 8 – 120 [mm].
Feed length: 2 – 80 [mm].
Feeding thickness: 0.1 – 2 [mm].
Feeding: 180 [°].
Feed accuracy: ±0.01 [mm].
Drive power: 7,5 [kW].
Dimensions (H x W x L): 2300 x 1600 x 1400 [mm].
Weight: 3800 [kg].
Operating instructions in German and English and schematics included.
