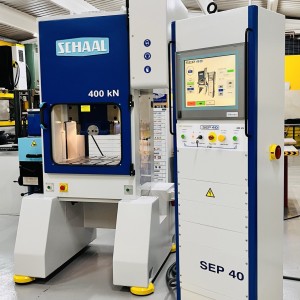

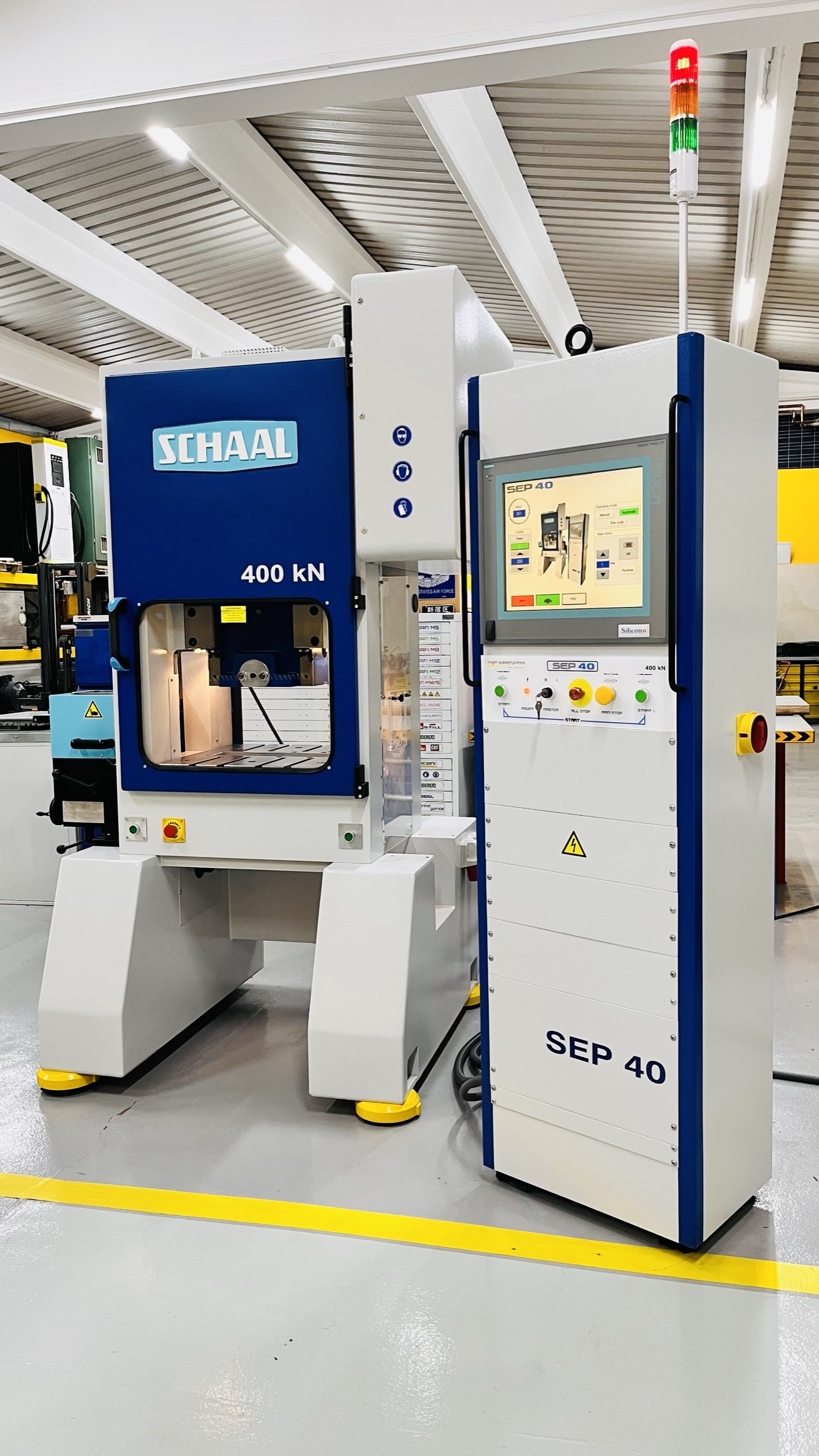

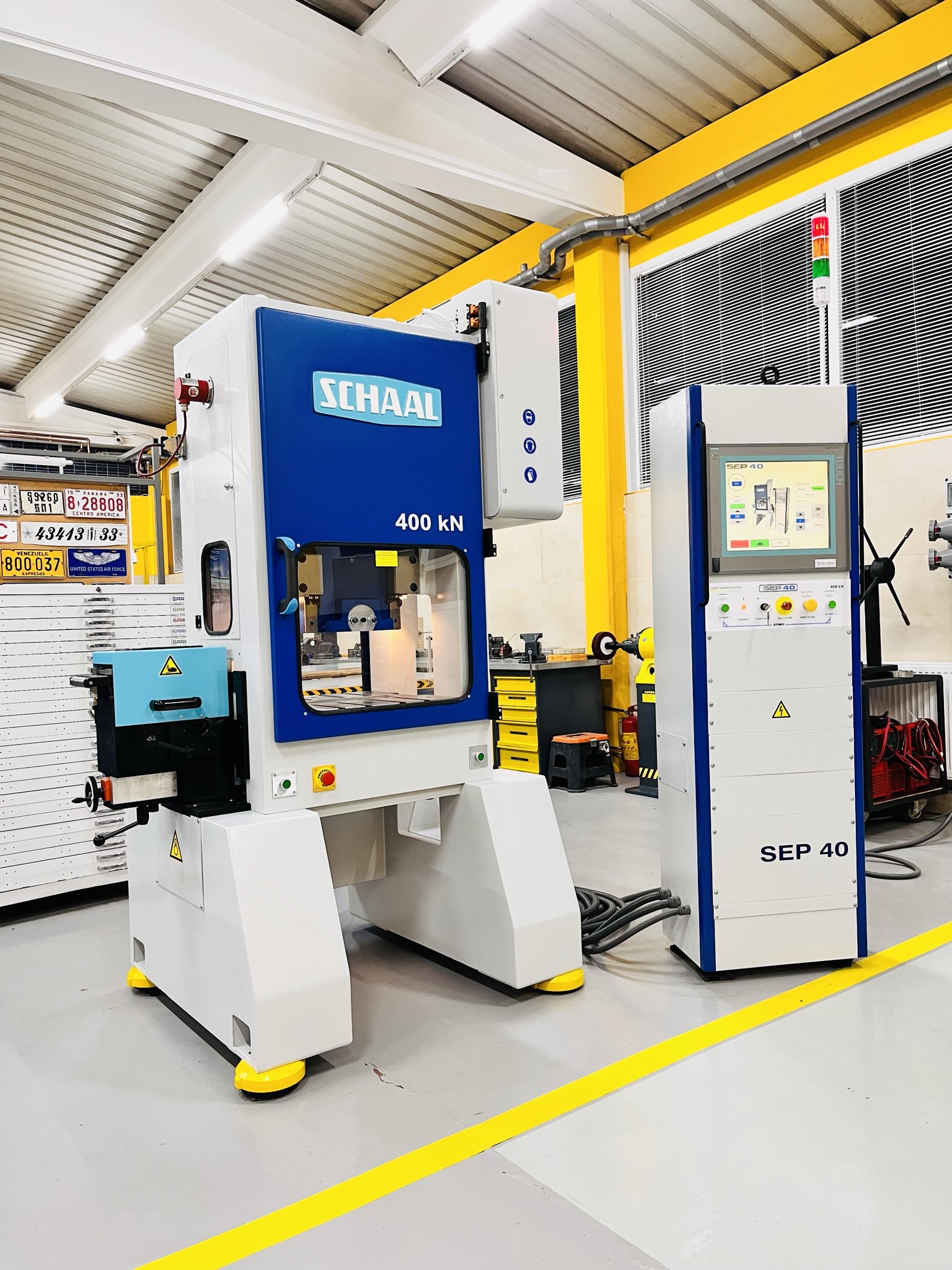

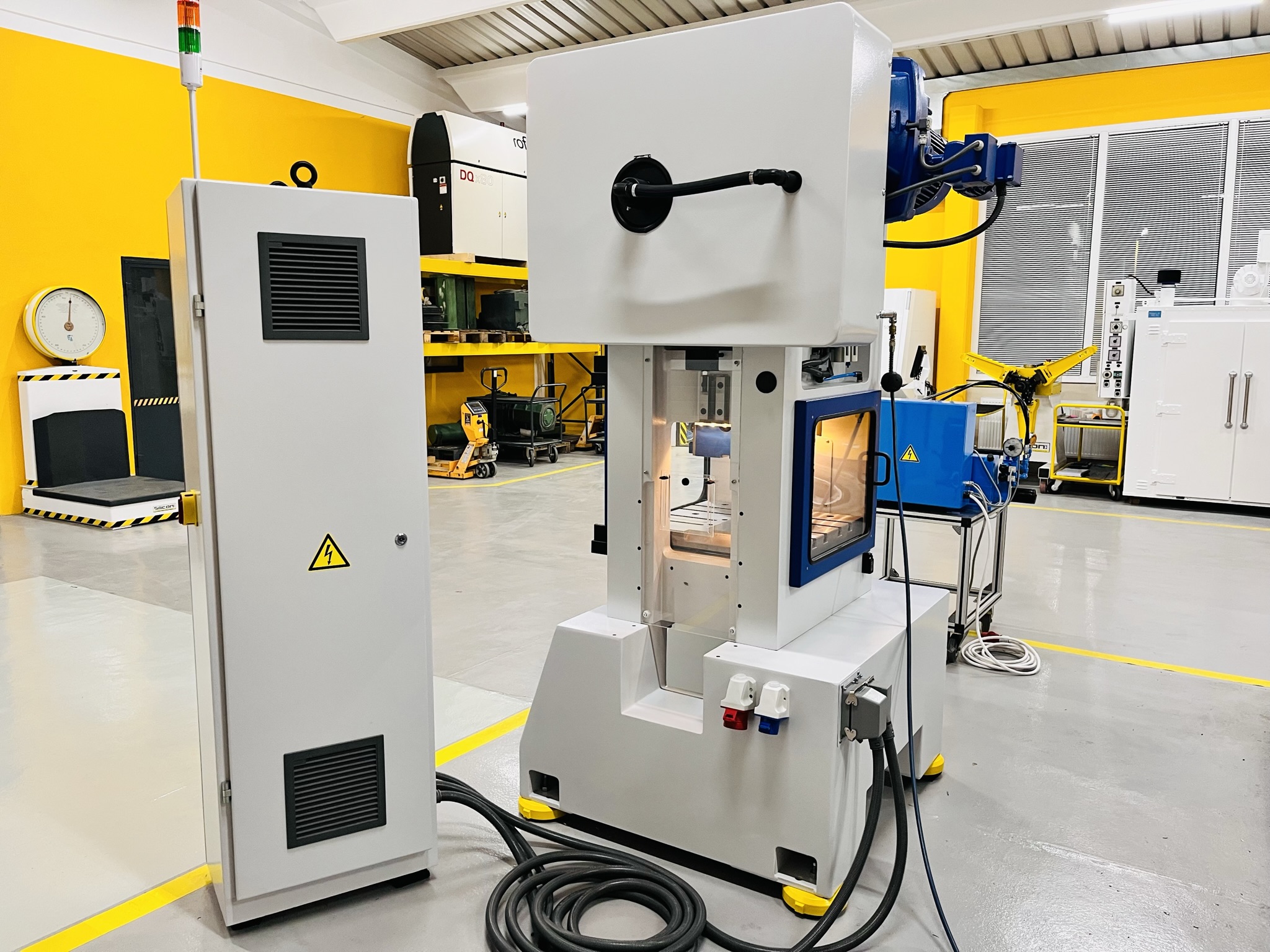

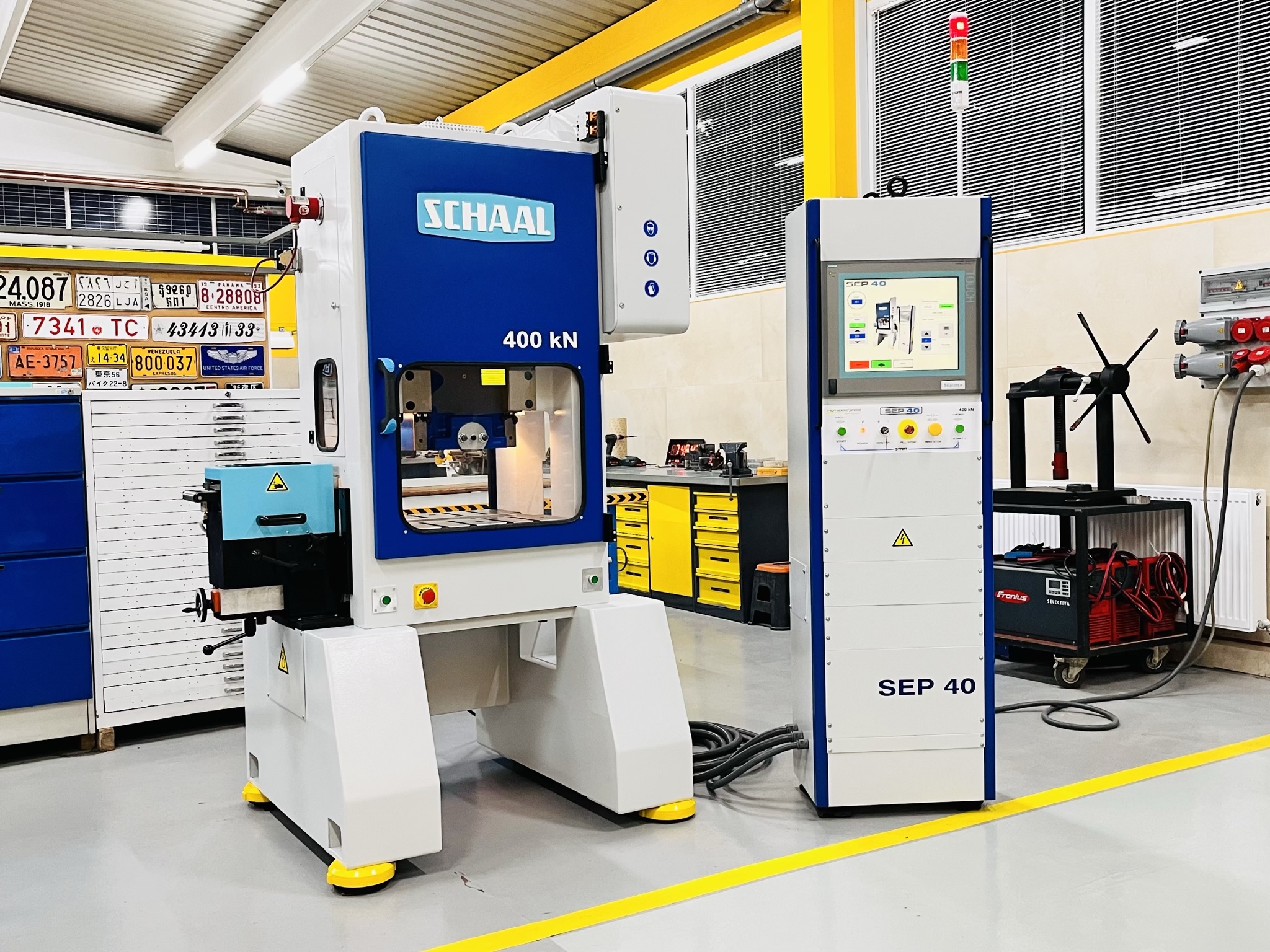

Schaal SEP 40 press

$1.00 $1.00
Sold By: Silicon
  • Schaal SEP 40.
  • Automatic punching press.
  • Year of manufacture: 1992.
  • Nominal capacity: 400 [kN] (40 [t]).
  • Min./Max. number of strokes: 60 – 300.
  • Ram adjustment: 70 [mm].
  • Variable stroke: 8 – 70 [mm].
  • Table dimensions: 550 x 580 [mm].

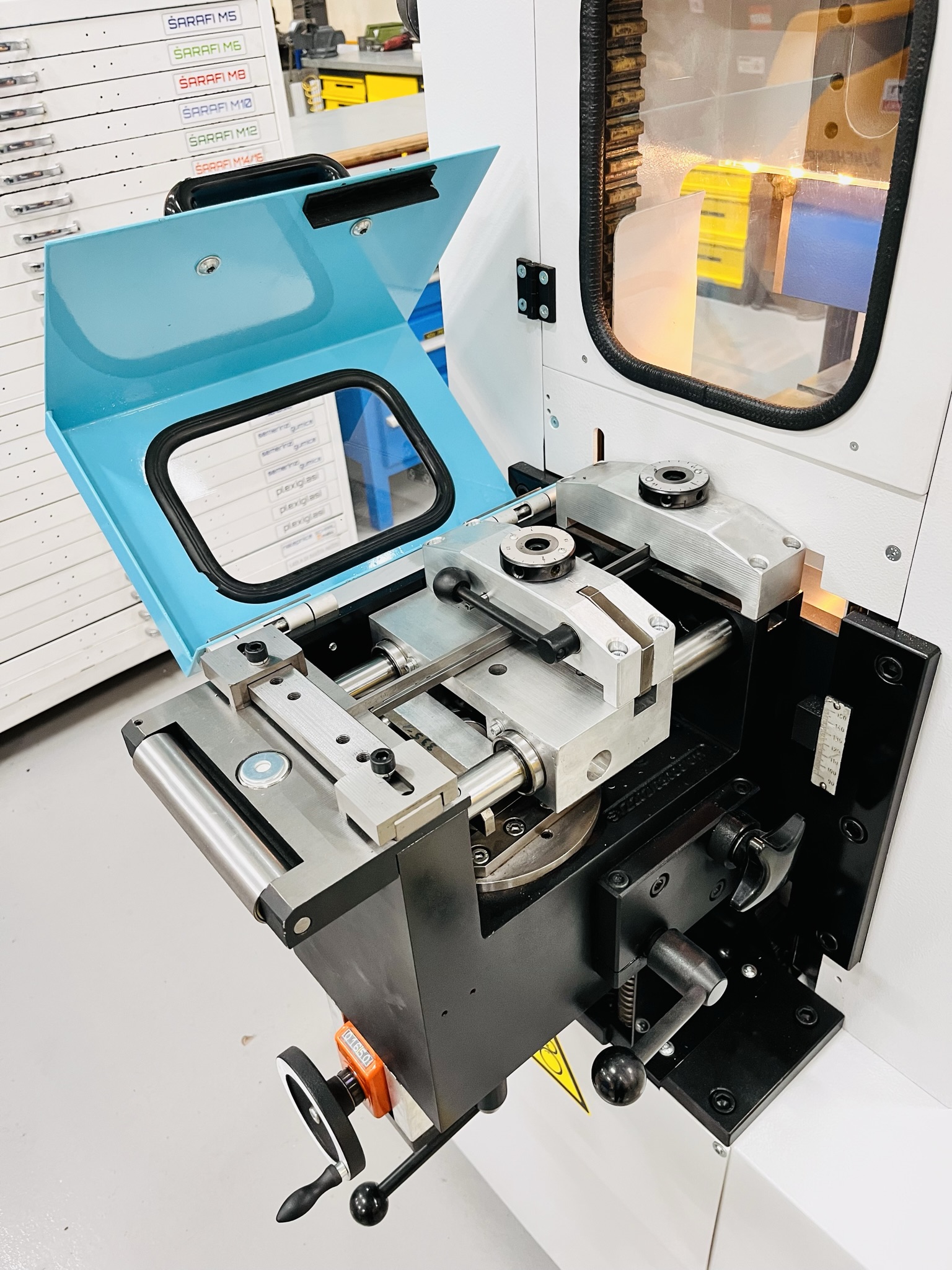

  • Fitted with gripper feeding device SZV 202.
  • Width of strip: 8 – 160 [mm].
  • Feed length: 2 – 100 [mm].
Out of stock
SKU: Schaal SEP 40 press
Categories: Metal, Presses
Free Shipping
Free Shipping
For all orders over $200
1 & 1 Returns
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Secure Payment
Guarantee secure payments
Hotline Order:

Mon - Fri: 07AM - 06PM

(+43) 660 742 0707

Become a Vendor? Register now

Year of manufacture: 1992.

Nominal capacity: 400 [kN] (40 [t]).
Min./Max. number of strokes: 60 – 300.
Ram adjustment: 70 [mm].
Variable stroke: 8 – 70 [mm].

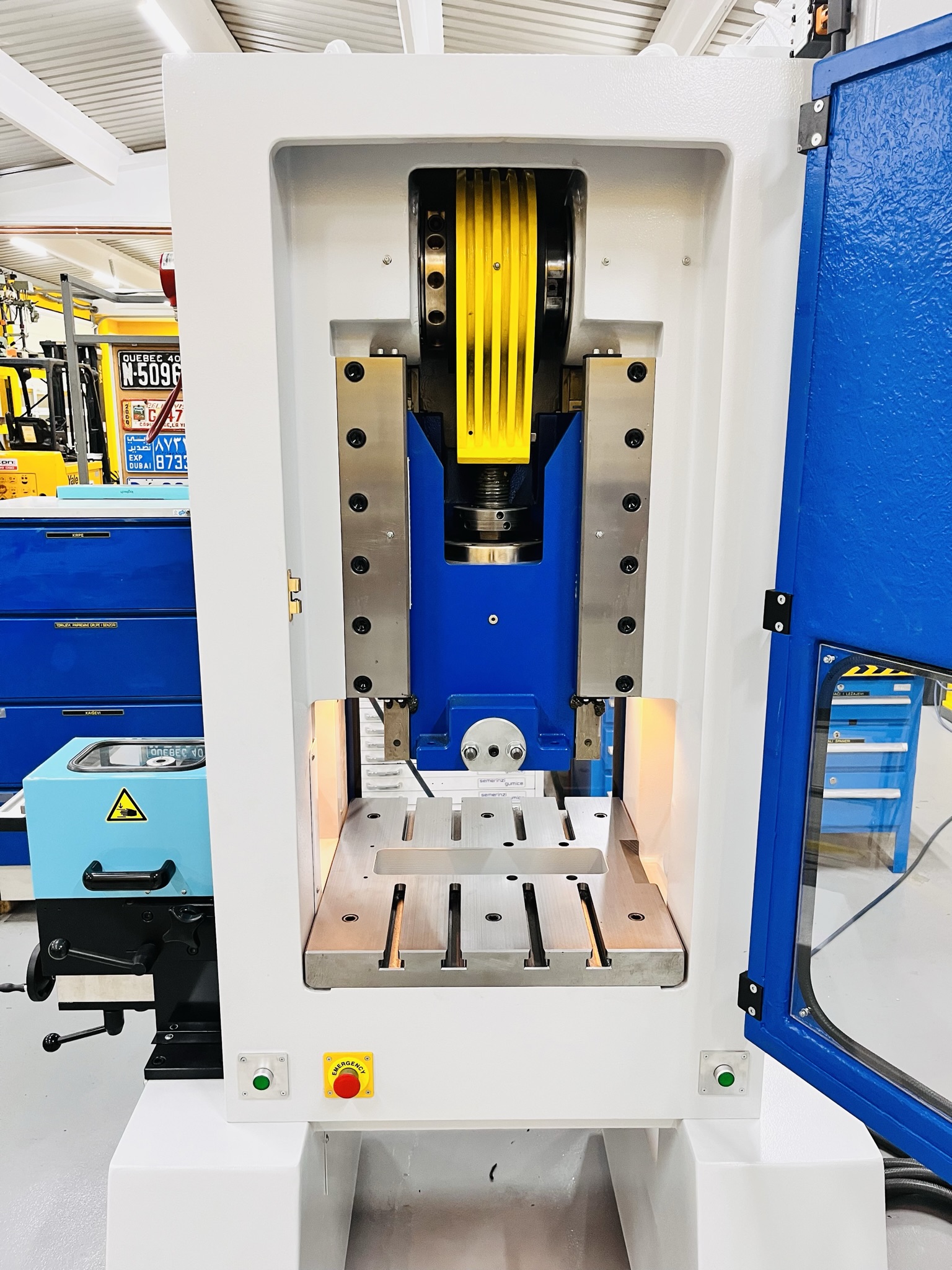

Ram surface area: 340 – 300 [mm].
Bore in ram: ø40 x 80 [mm].

Stroke range: 8, 10, 15, 20, 25, 31, 36, 41, 46, 50, 54, 58, 61, 64, 66, 68, 69, 70 [mm].

Table dimensions: 550 x 580 [mm].
Table thickness: 60 [mm].
Hole in table: 400 x 200 [mm].

Fitted with gripper feeding device SZV 202.
Width of strip: 8 – 160 [mm].

Feed length: 2 – 100 [mm].
Feeding thickness: 0.1 – 2 [mm].
Feeding: 180 [°].
Feed accuracy: ±0.02 [mm].

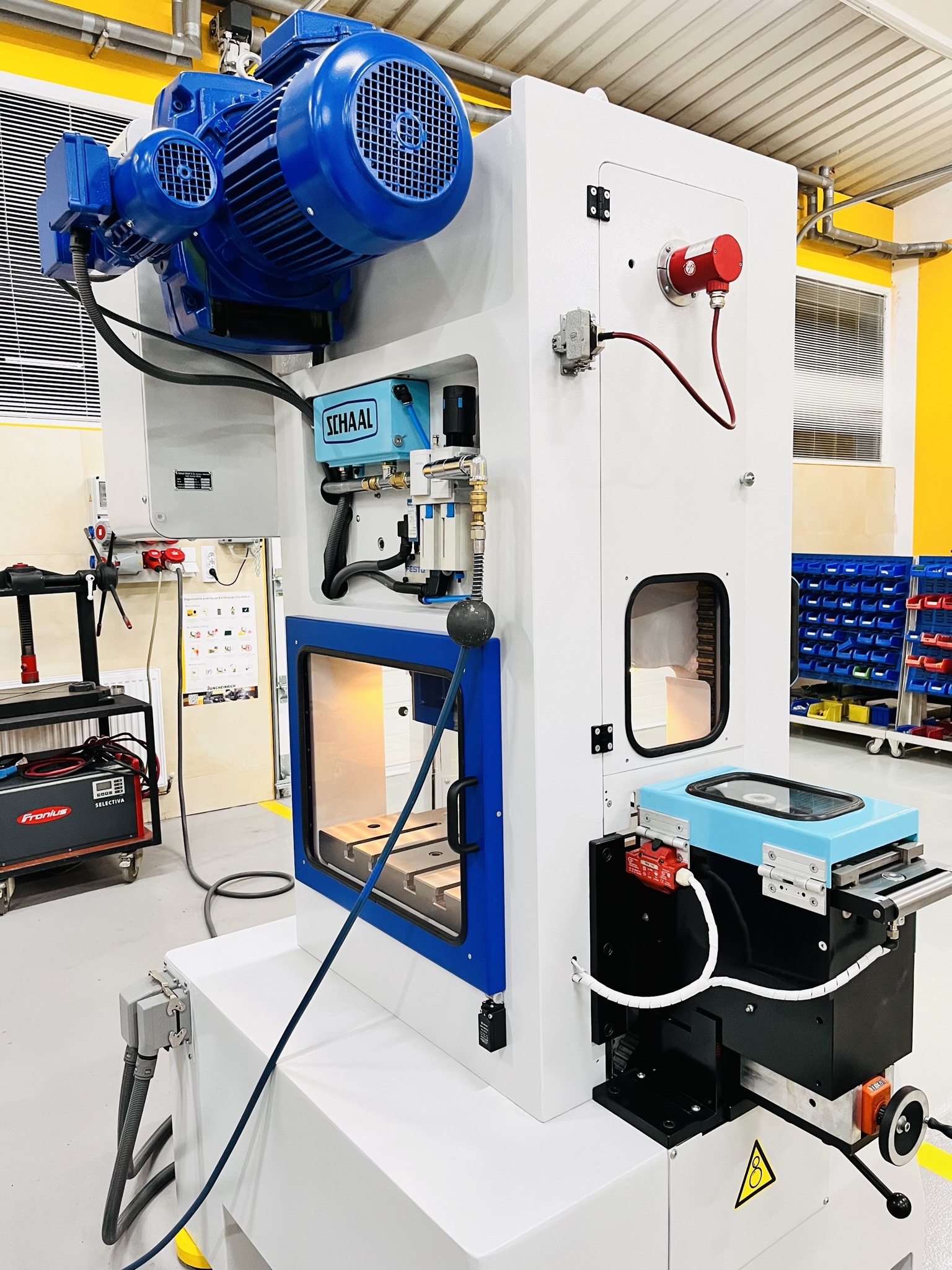

Drive power: 7,5 [kW].

Dimensions (H x W x L): 2200 x 1600 x 1050 [mm].

Weight: 3800 [kg].

Machine in tested working condition.

Original operating instructions in German and English and schematics included.
