BRUDERER BSTA 50 HL

$1.00 $1.00
Sold By: Silicon
  • Bruderer Automatic Precision Punching Press.
  • Type: BSTA 50 HL.
  • Max. Pressure: 500 kN (50 T).
  • Adjustable stroke: 16; 19; 25; 32; 38; 44; 51.
  • Fitted with Bruderer feed unit BBV 205/120.
  • Max. strip width: 200 mm.
  • Max. strip thickness: 6 mm.
  • Max. feeding pitch: 120 mm.
Out of stock
Mã sản phẩm: BRUDERER BSTA 50 HL
Danh mục: Rau củ quả, Trái cây
Miễn phí vận chuyển
Miễn phí vận chuyển
Đối với tất cả các đơn đặt hàng trên $200
Đổi trả 1 & 1
Đổi trả 1 & 1
Hủy sau 1 ngày
Thanh toán an toàn
Thanh toán an toàn
Đảm bảo thanh toán an toàn
Tổng đài đặt hàng:

Mon - Fri: 07AM - 06PM

(+965) 7492-4277

Trở thành nhà bán hàng? Register now

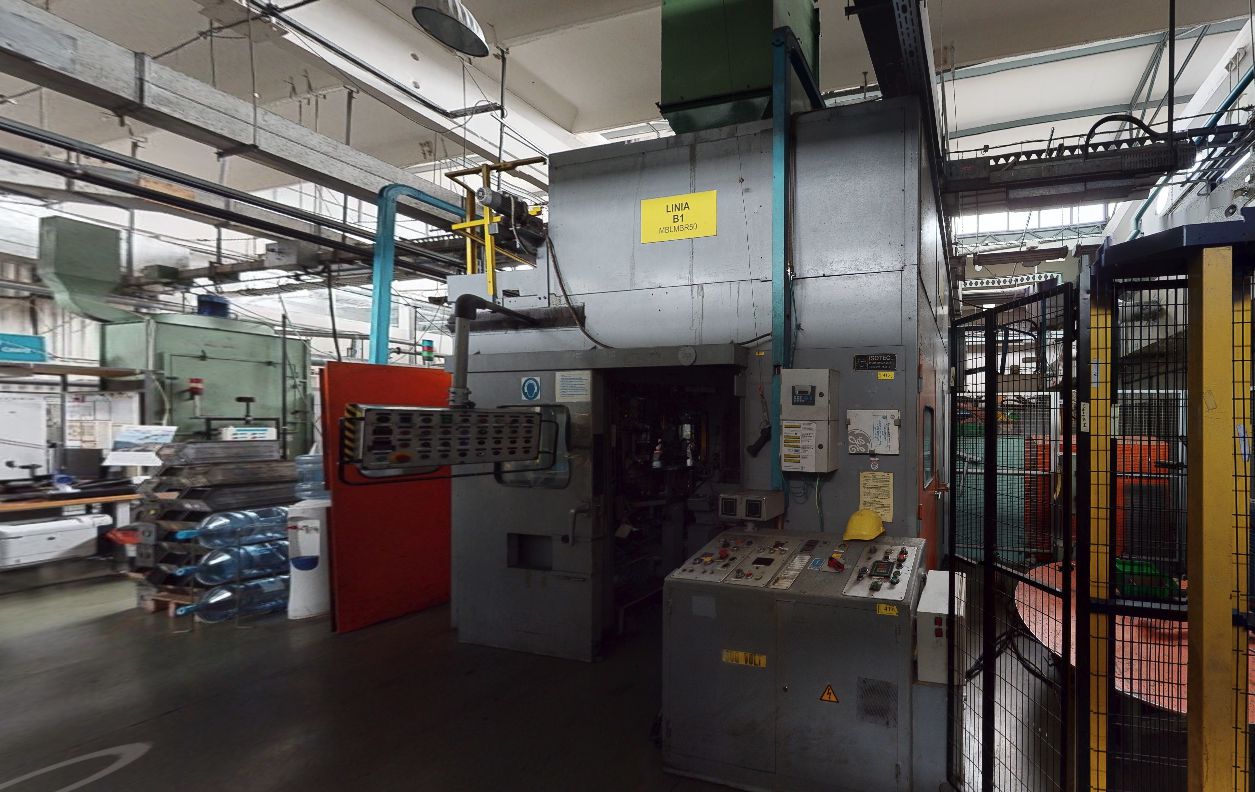

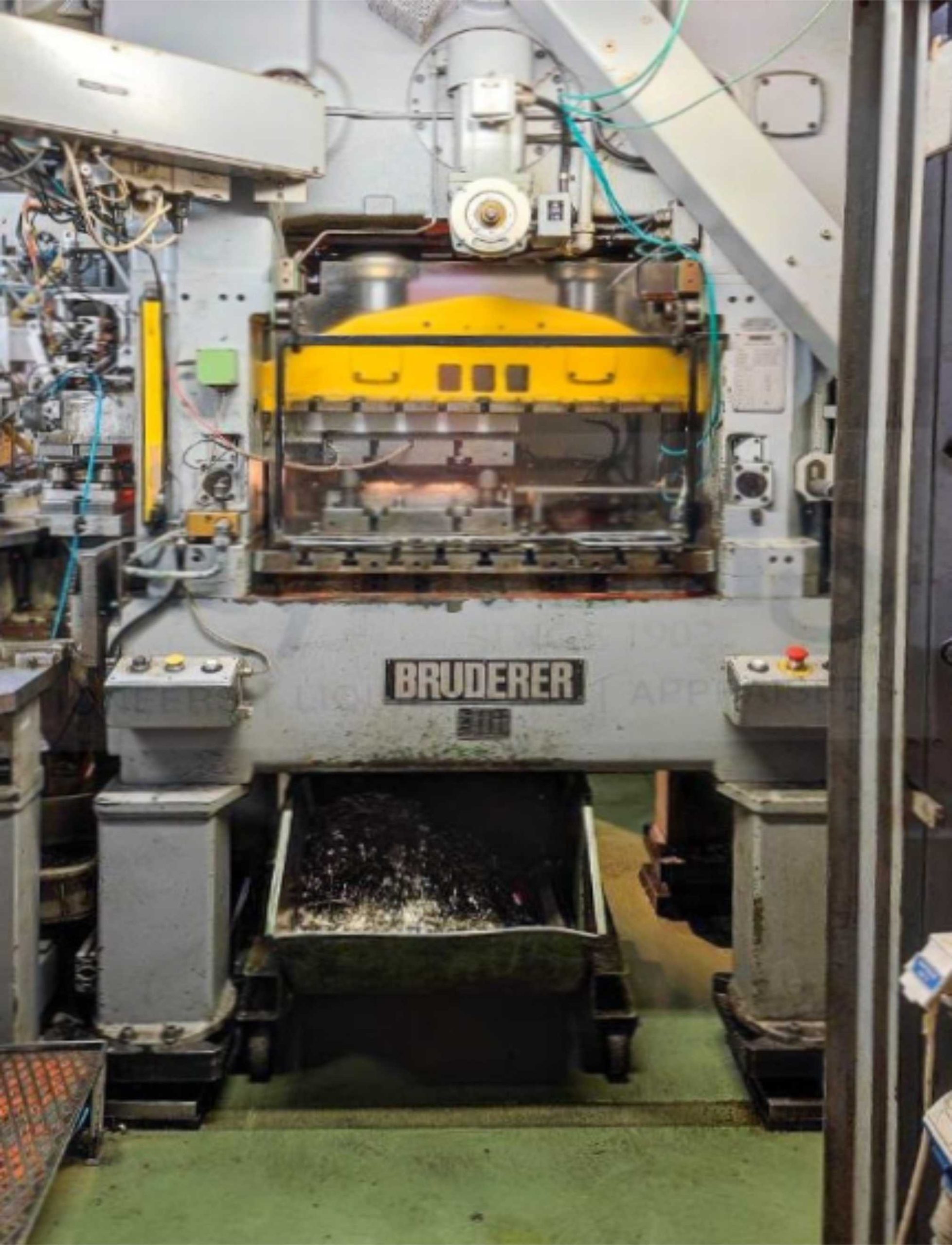

Bruderer high speed press.
Model: BSTA 50 HL

Max. Pressure: 500 kN (50 T).

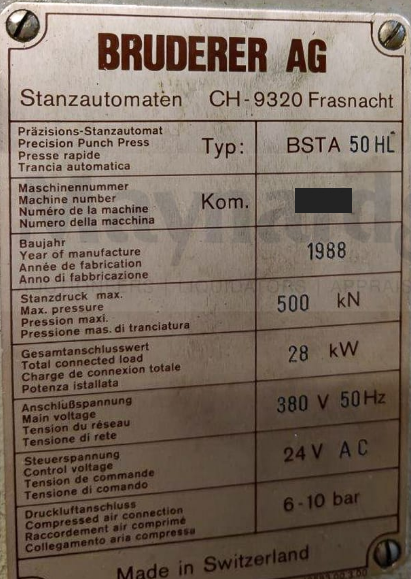

Year of production: 1988.

Fitted with roller-gripper feed unit BBV 205
Max. strip width: 205 mm.
Max. strip thickness: 6 mm.
Max. feeding pitch: 120 mm.
Analogue control

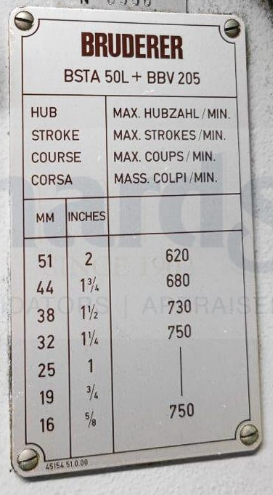

Adjustable stroke: 16; 19; 25; 32; 38; 44; 51.
Adjustable stroke 16 to 51 mm
Bed (bolster) area 940 x 650 mm
Ram adjustment 64 mm
Tool loading width 950 mm max.
Strip inlet height 60 to 140 mm

Electrics: 380 volts 50Hz
Weight 8200 kgs approx.

Max. Tool width clearance between columns: 950 mm.

Connected load: 28 kw.
Machine dimensions: H 3040 x W 2710 x D 1820 mm.

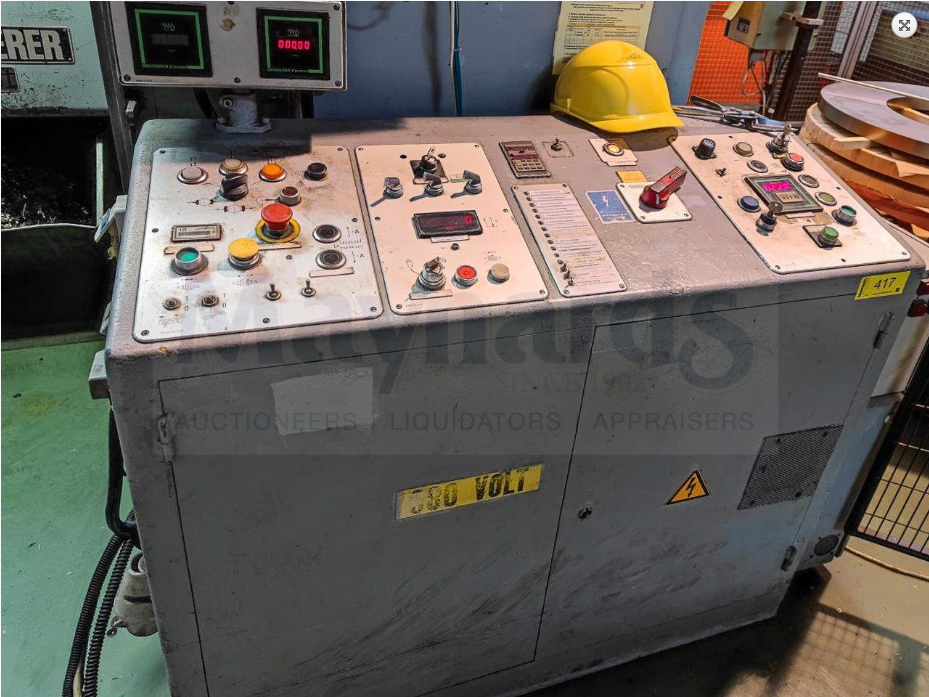

Electrical cabinet and control.

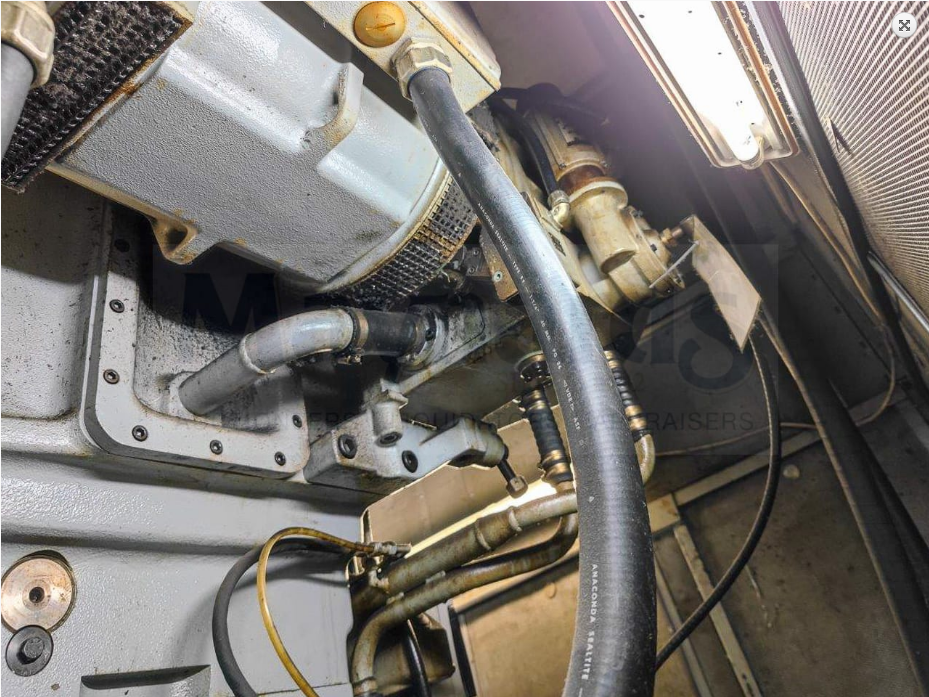

Oil pump.
Oil cooler.
Fitted with spring feet dampers.
Front and rear safety guards with inspection glass.
